Accuracy. Durability. Efficiency

TLBEND® Automatic Panel Bender

Our full automatic panel bender delivers high-speed, accurate bending with smart automation and flexible tooling for a wide range of applications.

Home
Panel Bender
Automatic Panel Bender

Play Video

Automatic Panel Benders for Sale

FBE-1502 Fully Automatic Panel Bender

Panel bender+Turret punching machine auto production line

FBE-3202 Fully Automatic Panel Bender

FBE-2520 Fully Automatic Panel Bender

Not sure which panel bender is right for you?

Tell us your sheet metal bending details!

Key Features of Automatic Panel Benders

Precision Compensation System

Automatically adjusts parameters to compensate for deviations, ensuring consistent bending accuracy and high-quality results.

Automatic Mold Change

Incorporates automatic mold changing, increasing efficiency and reducing manual intervention for a seamless operational experience.

Flexible Positioning Device

Utilizes a versatile positioning system that adapts to various workpiece shapes and sizes, ensuring accurate processing even for complex forms.

User-Friendly CNC Interface

Full touch-screen interface with a powerful CNC system offers intuitive operation and seamless automation control.

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.

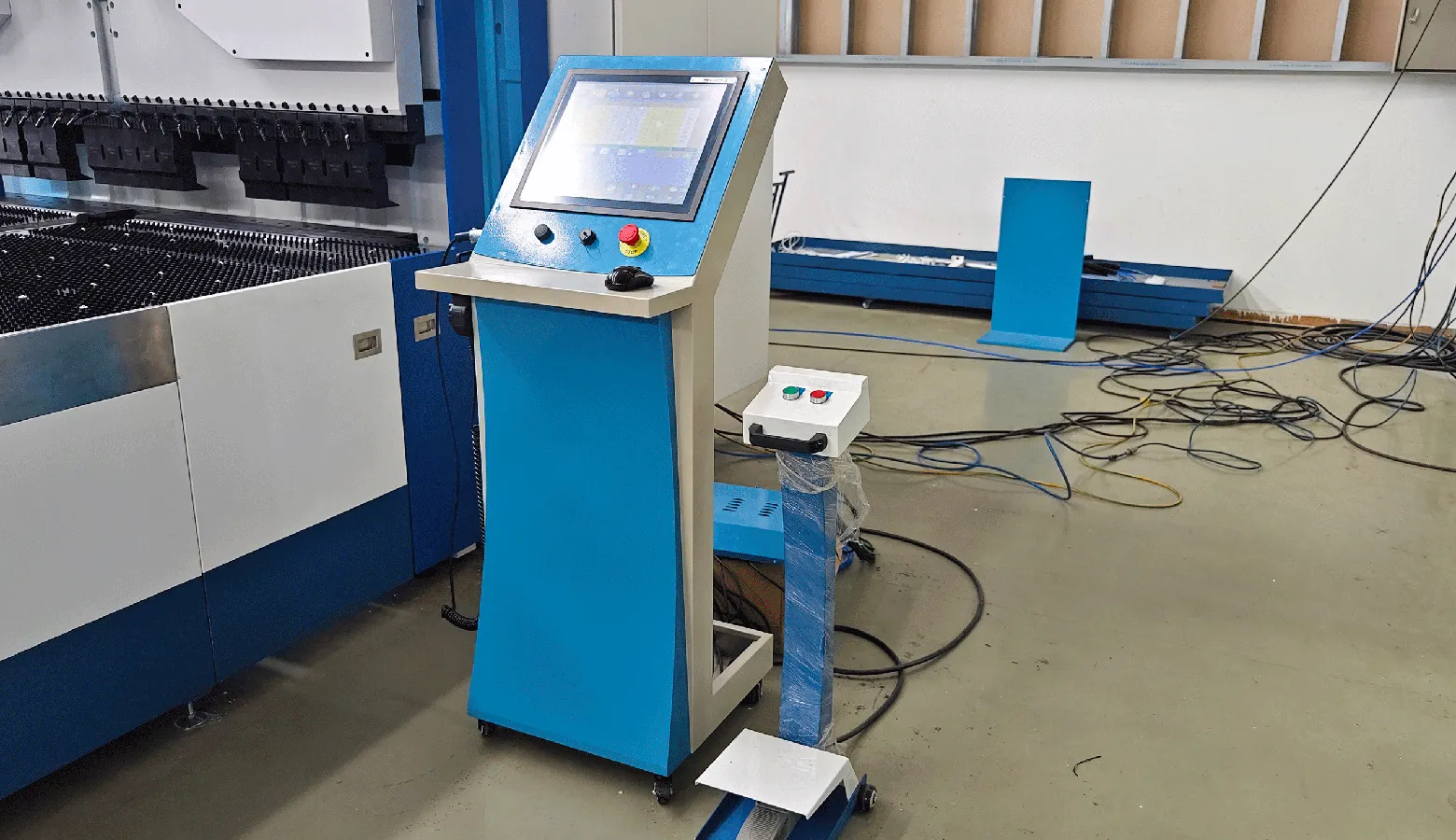

SL300-PC CNC System

Meeting modern demands for intuitive, advanced software, the SL300-PC simplifies programming, reducing production steps. With 3D modules imports, flexible programming modes, automatic tool management and more, it ensures efficient, accurate operations that meet high client expectations.

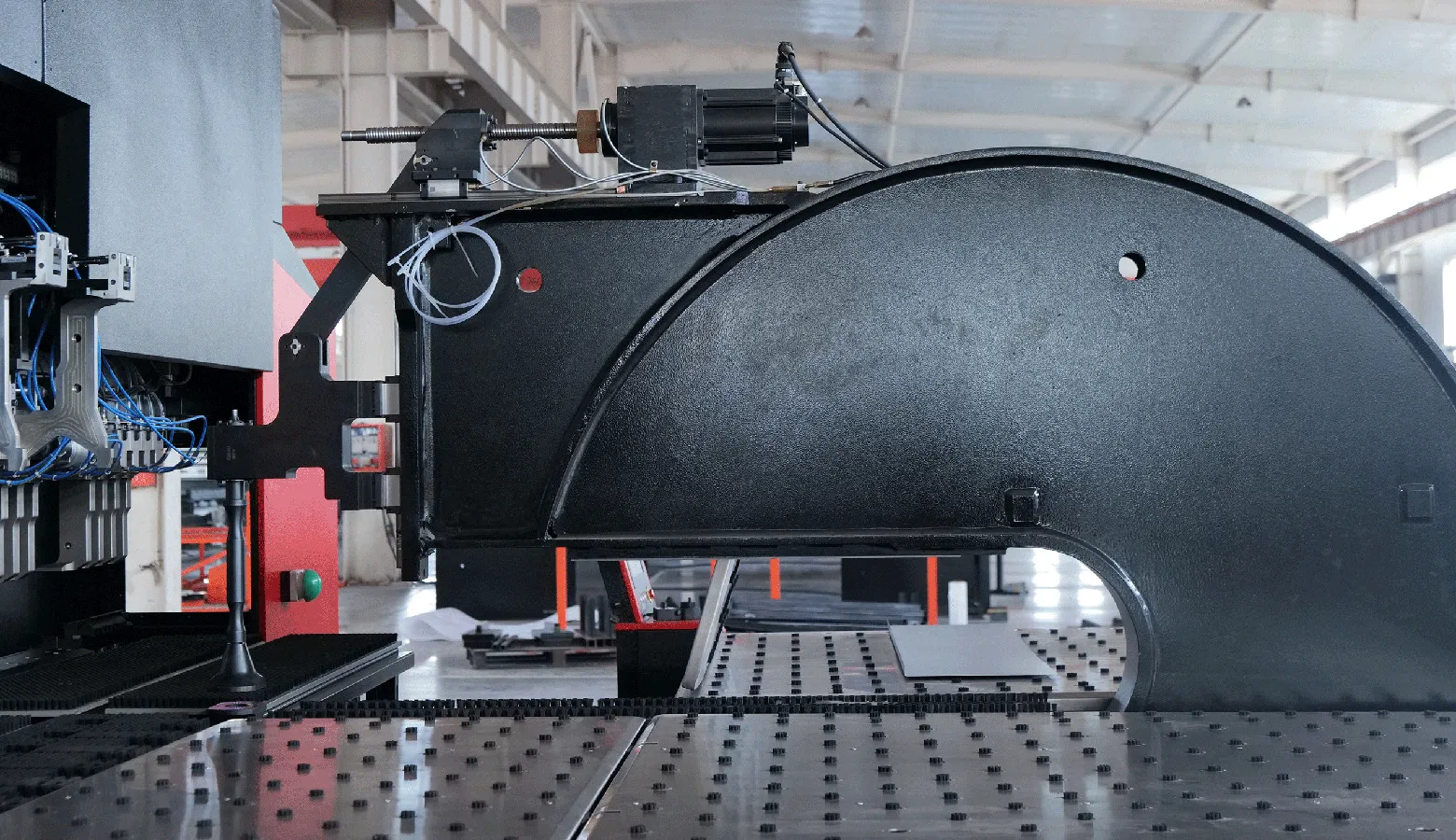

Manipulator

Efficiently changes sides, rotates, and moves sheet metal, offering enhanced flexibility through a C-type structure. Servo-driven precision guarantees accurate positioning and transportation, ensuring smooth operation and alignment during the bending process.

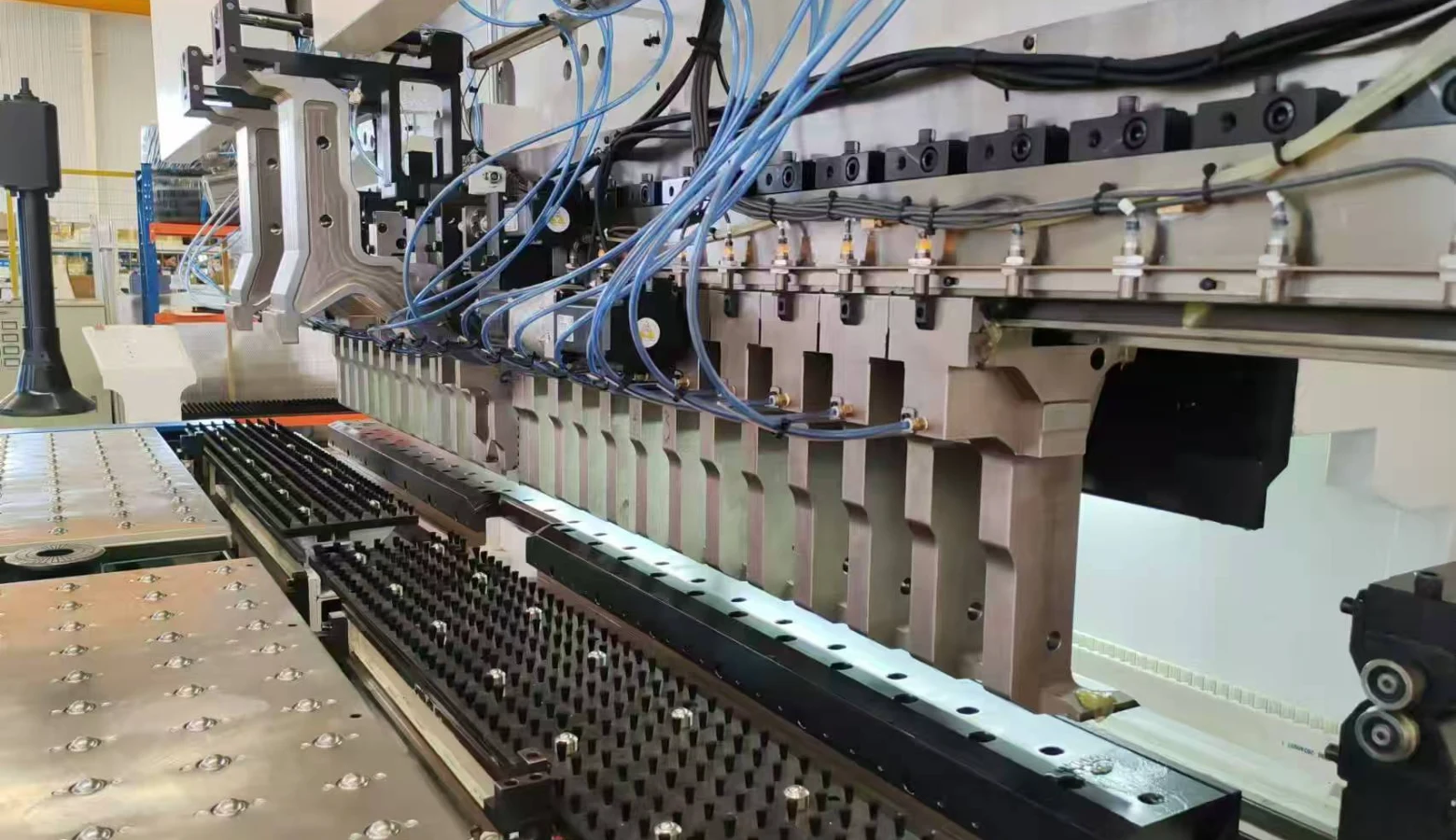

Standard Worktable

Equipped with a composite steel ball and brush surface to minimize resistance and prevent surface damage. The tilting table design simplifies maintenance and handling.

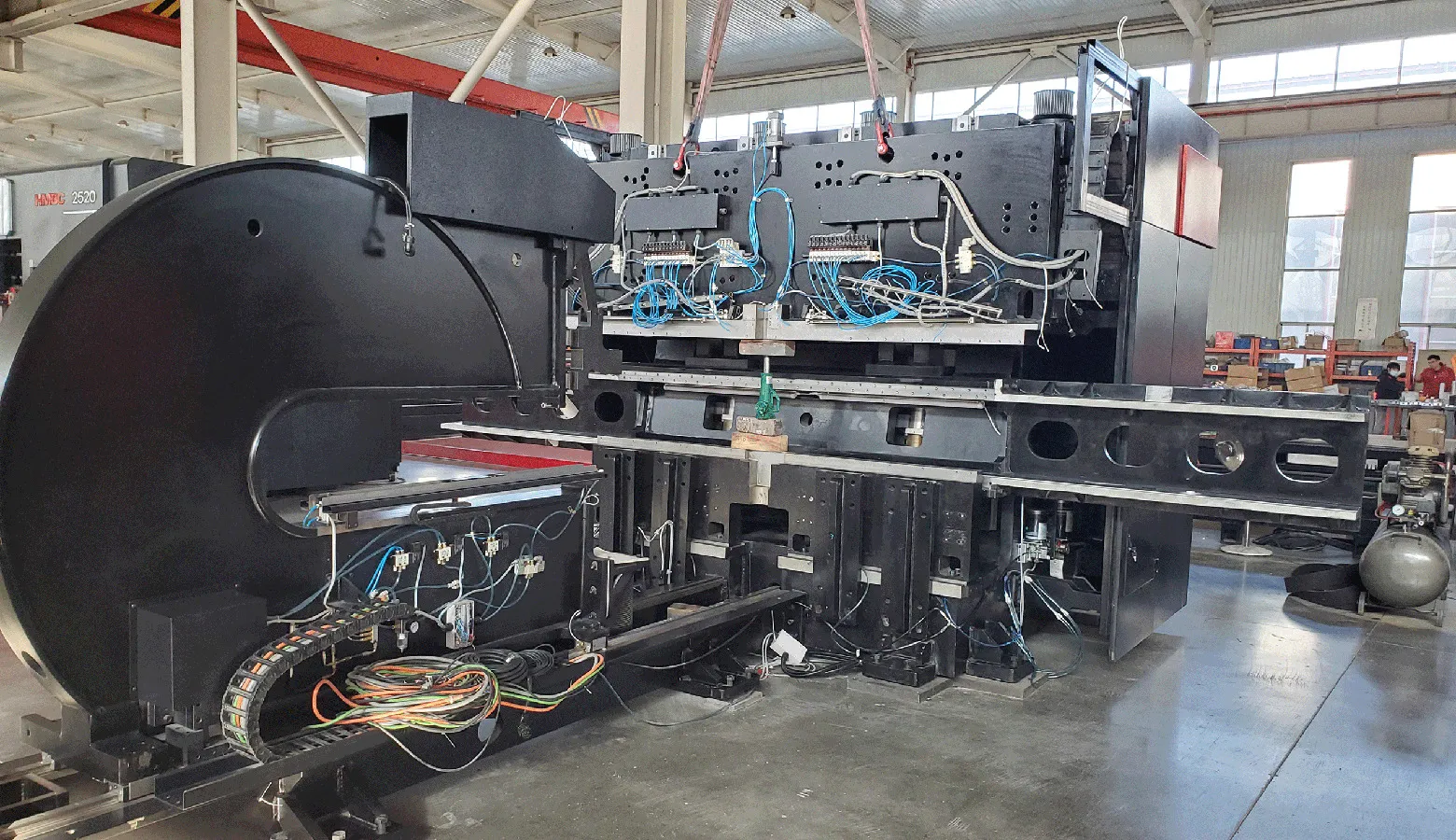

Mechanical Servo Bending System

Features a link-type flanging mechanism for high rigidity and precision. With CNC control, it supports multiple folding modes and ensures safety. Adjustable stroke and speed maximize folding efficiency and quality.

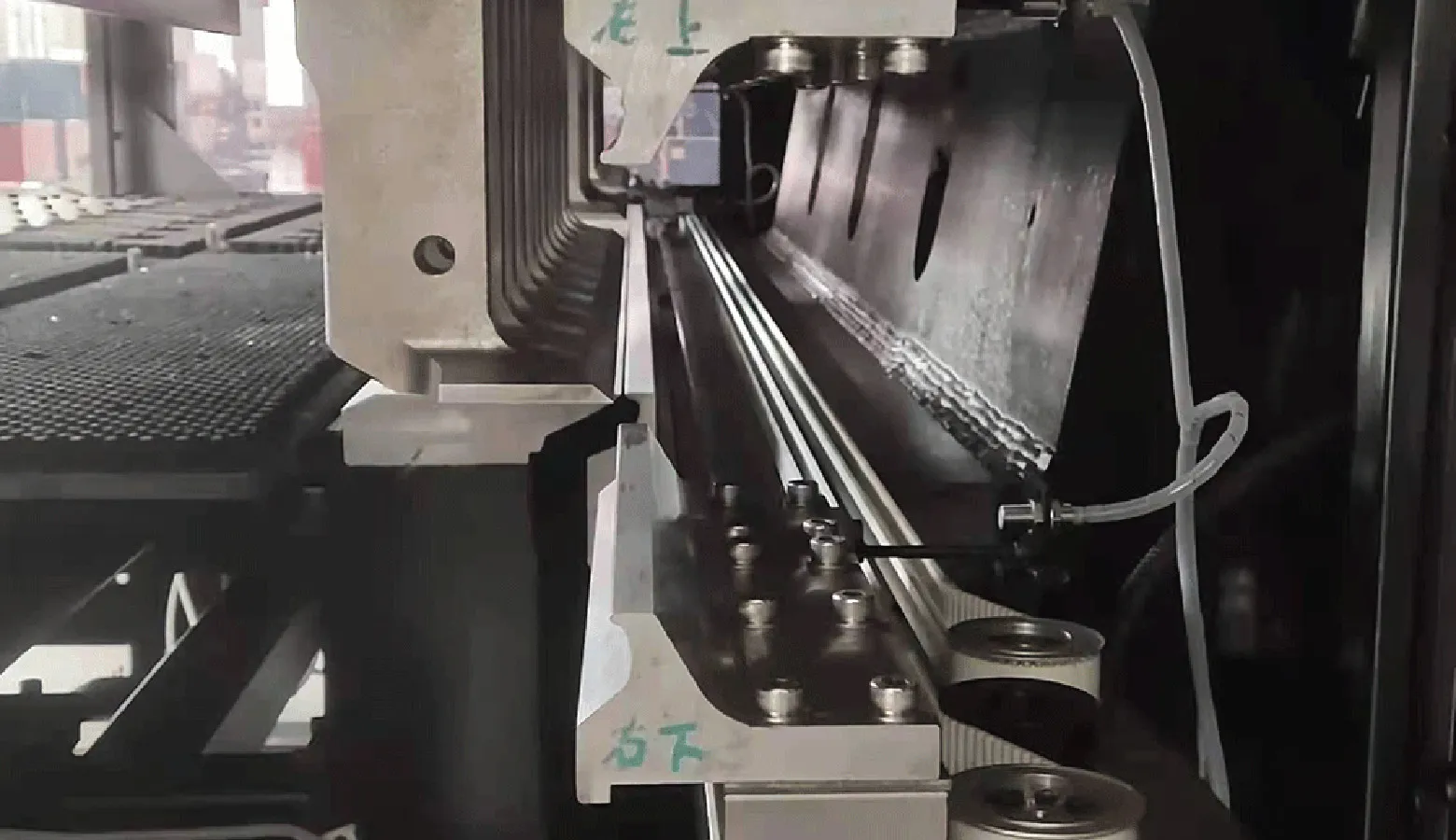

Universal Bending Dies

Universal bending dies enable positive and negative angle bending, large arcs, and hemming. Made from high-quality die steel, they feature high-precision machining for reliability and reduced wear, ensuring long-lasting performance in complex section workpieces.

Technical Specifications

Model	FBE2220	FBE2520	FBE3220
Maximum Bending Length	2,200 mm	2,500 mm	3,200 mm
Sheet Length Min.	430*250 mm
Maximum Diagonal	2,660 mm	2,800 mm	3,500 mm
Bending Straightness	0.1 mm/m
Maximum Bending Height	200 mm
Maximum Stacking Height of Worktable	200 mm
Max. Feeding Speed	1200 mm/s
Bending Angle	±130°
Positioning Precision	±0.15 mm
Maximum Thickness(Full Length)
Steel UTS 410 N/m㎡	3.0 mm
Stainless steel UTS 680 N/m㎡	2.0 mm
Aluminium UTS 265 N/m㎡	4.0 mm
Minimum Thickness	0.5 mm
Average Absorbed Power	7 kWh	11 kWh
Numerical Control	22 Axis

Specifications apply to standard models. T&L reserves the right to adjust data without notice.

We Support Any Customization and Upgrade

As a leading custom panel bender manufacturer, we specialize in crafting customized solutions if standard specifications don’t fit your needs.

Customizable Parameters

Our Automatic Panel Bender can be tailored to specific production requirements, ensuring it meets the demands of various applications. Adjustments to key parameters allow for optimized performance in diverse tasks:

Customizable Functions

To further enhance versatility, we offer custom functional upgrades designed to expand your production capabilities. These options allow precise handling of complex bending and cutting tasks:

Only 5-Step Away from Your Ideal Machine

Requirements Analysis

Detailed consultation to understand your production needs, technical requirements, and specific industry standards.

Technical Design

Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.

Solution Review

Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.

Manufacturing & Testing

Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.

Delivery & Support

Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
