T&L Horizontal V Grooving Machine

Elevate your production with our horizontal V grooving machine. Built to handle whole sheets and symmetrical pieces, it ensures exceptional grooving performance, offering unmatched reliability, adaptability, and speed for your industrial metalworking needs.
  • Advanced servo motor for accuracy
  • Hydraulic clamping ensures firm positioning
  • Smooth cutting with gear-rack drive
  • Rigid frame guarantees lasting performance
Get A Quote
Play Video

Horizontal V Grooving Machines for Sale

WB-v-grooving-machine

WB-1250*4000 Horizontal V Grooving Machine

Not sure which horizontal V grooving machine is right for you?

Tell us your sheet metal processing details!
Consult Expert Now

Key Features of Horizontal V Grooving Machines

Flawless Grooving with High Precision
Delivering unmatched precision, our machines create flawless grooves for perfect bends in metal components, enhancing your manufacturing efficiency.
Energy-Efficient for Lower Costs
Frequency-controlled motors reduce energy consumption while maintaining excellent cutting performance.
Smart Software for Faster Operations
Intelligent algorithms minimize idle movements, optimize cutting paths, and increase overall efficiency.
Safety Features for Protection
Equipped with advanced safety features, such as emergency stop systems, ensuring operator protection during high-speed grooving processes.
WB-v-grooving-machine
Add Your Tooltip Text Here

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.
Inquire about More Standard & Optional Components

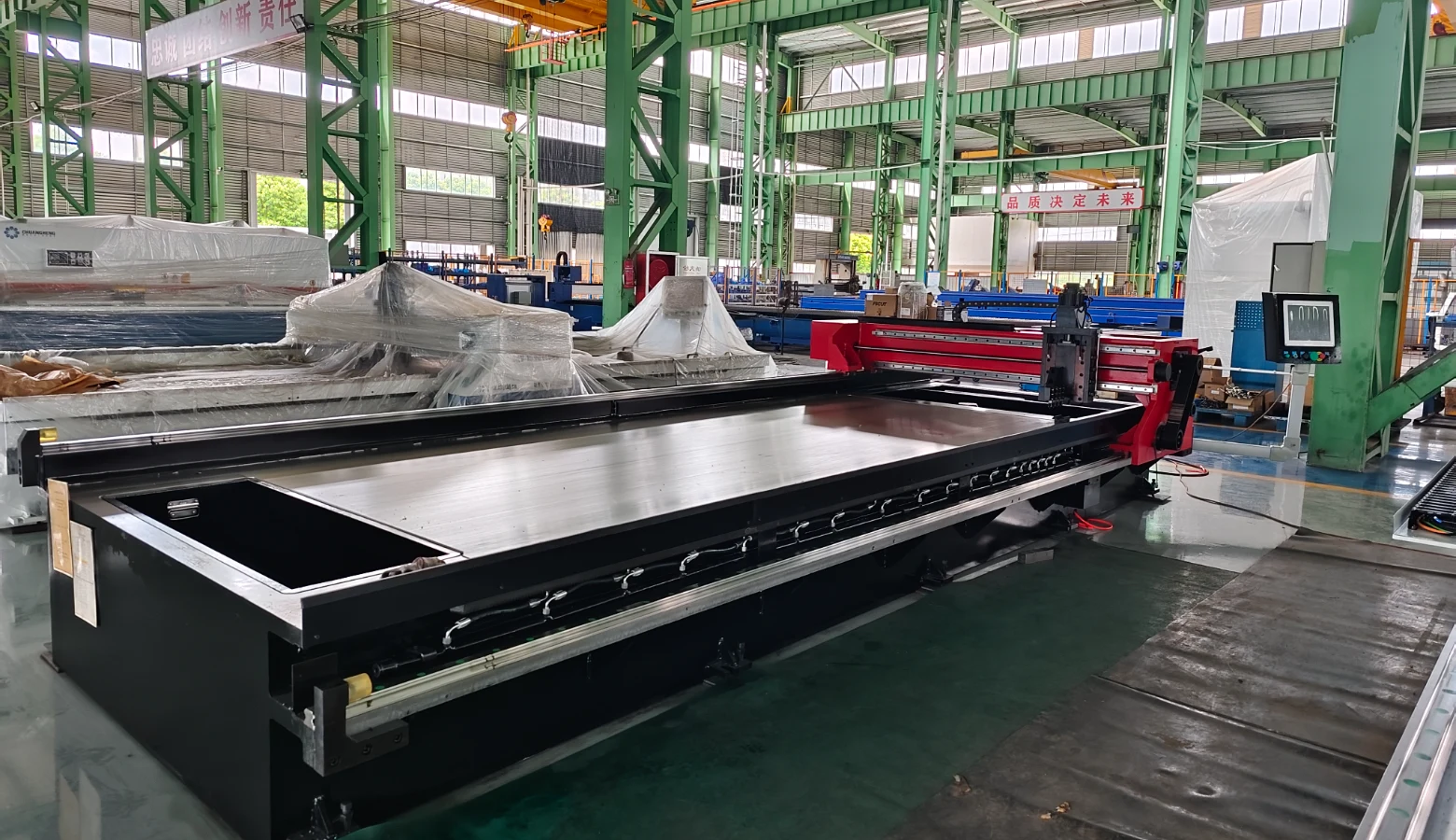

Structure & Frame
We adopt a high-rigidity frame and beam design, treated with post-weld high-temperature annealing, effectively ensuring stable precision and long-lasting durability under demanding operational conditions.
horizontal grooving machine frame

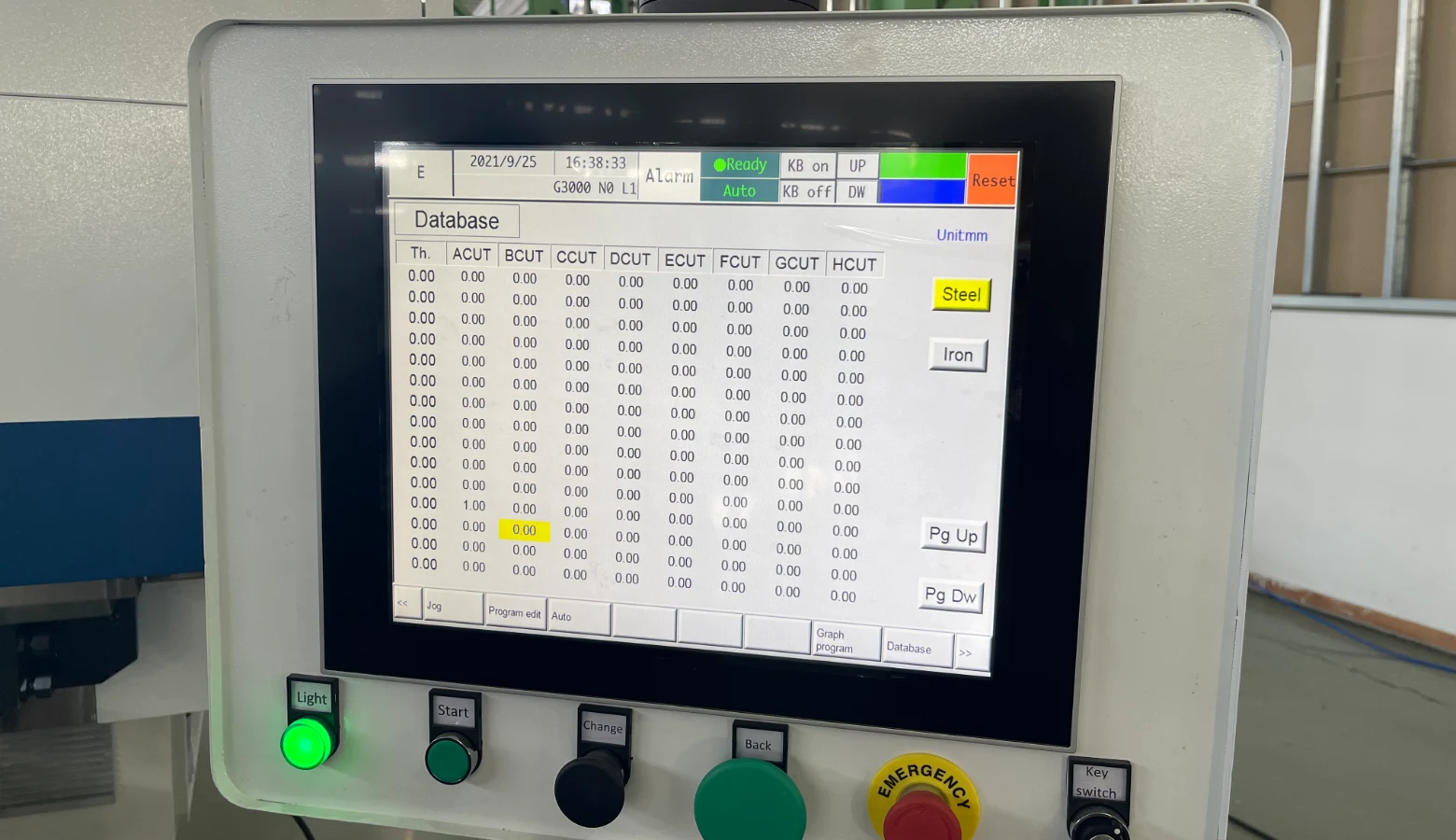

CNC Control System
Incorporating advanced CNC controls, precise adjustments and optimized cutting paths become effortless. User-friendly programming simplifies workflows, increases efficiency, and achieves exceptional accuracy for complex grooving tasks.
vertical grooving machine cnc

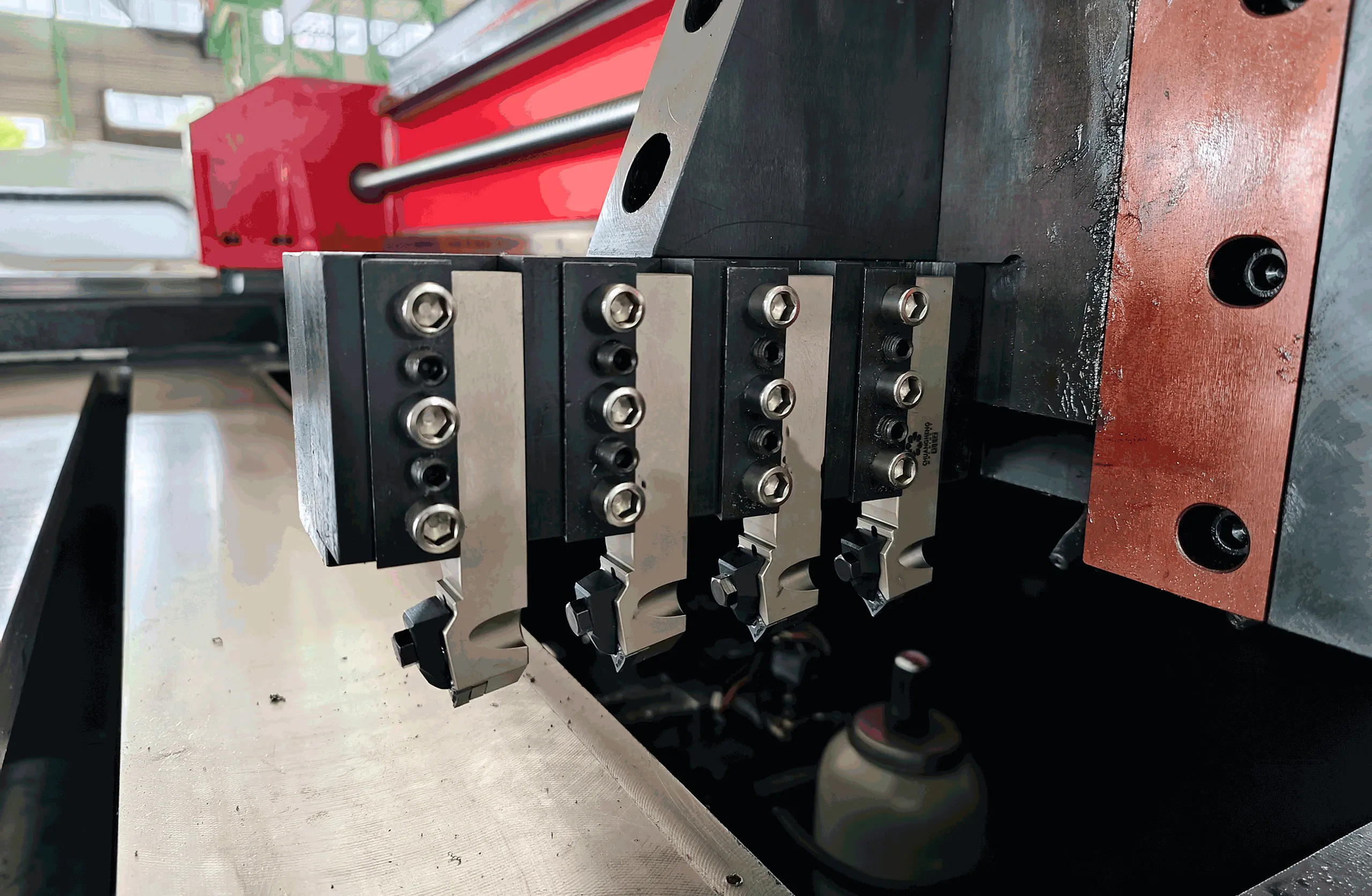

Alloy Blade
Engineered with high-performance alloy blades, the system supports efficient grooving with multiple configurations. Options include six alloy blades, eight high-speed steel blades, etc, tailored for optimal precision and operational efficiency.
v grooving machine

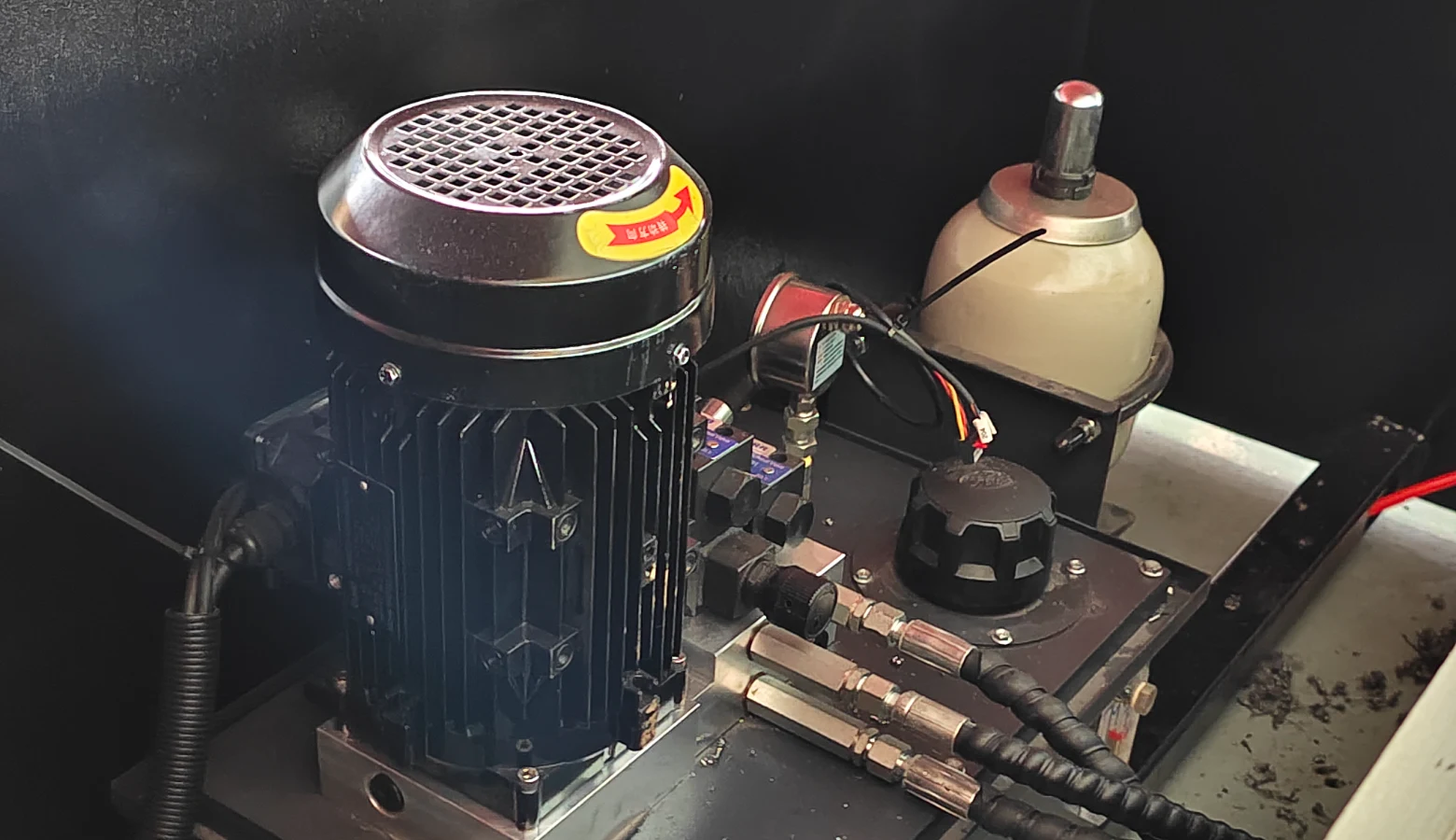

Hydraulic Integrated Station
Employing imported brand hydraulic valve components, the integrated station features a compact structure with reduced failure rates, ensuring high reliability and efficiency in metal grooving operations.
hydraulic station of grooving machine

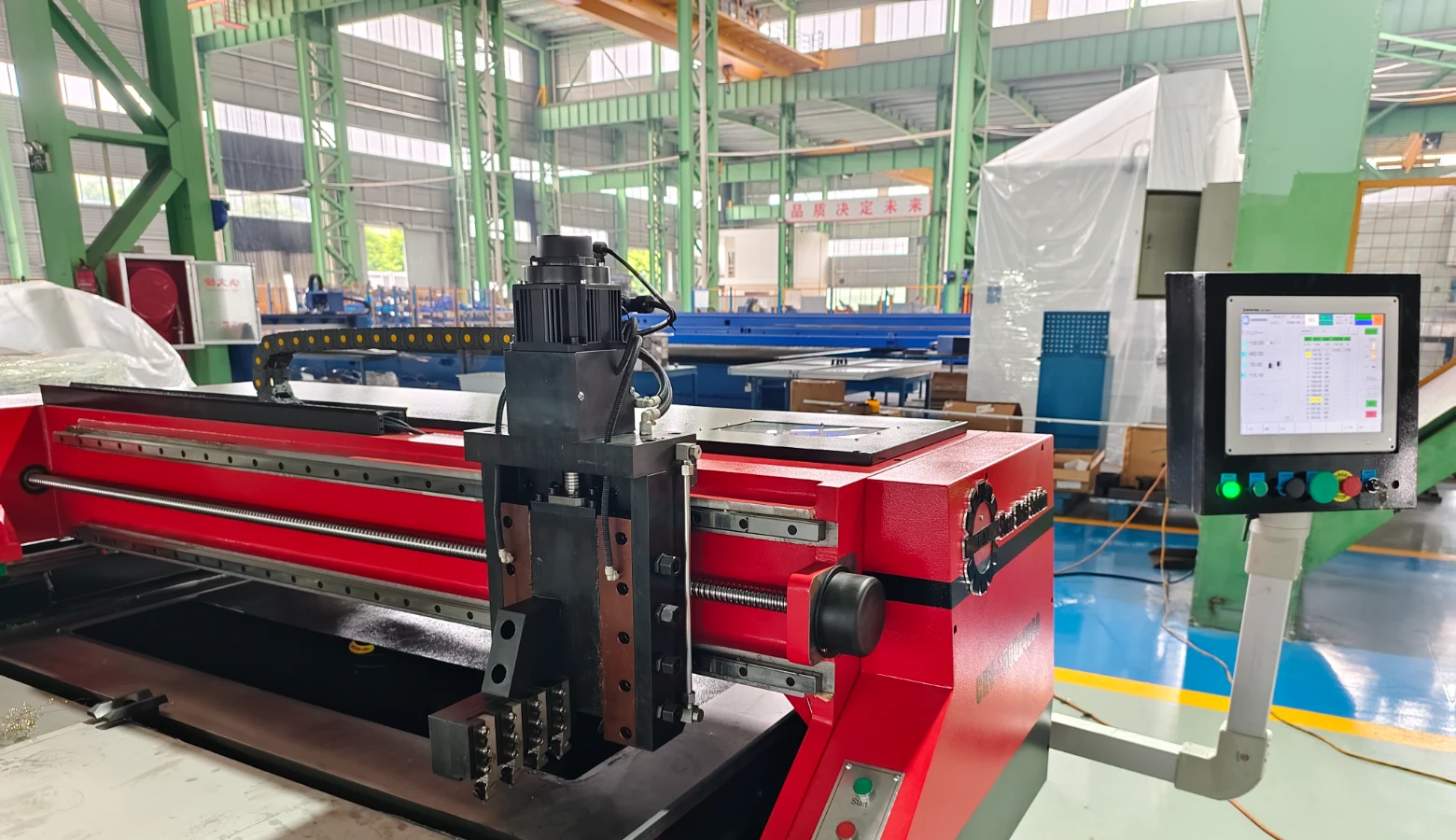

Worktable
Constructed from forged and quenched 42CrMo material, the worktable offers durability and a long service life. Integrated leveling features maintain smooth operation and consistent precision.
horizontal worktable grooving machine

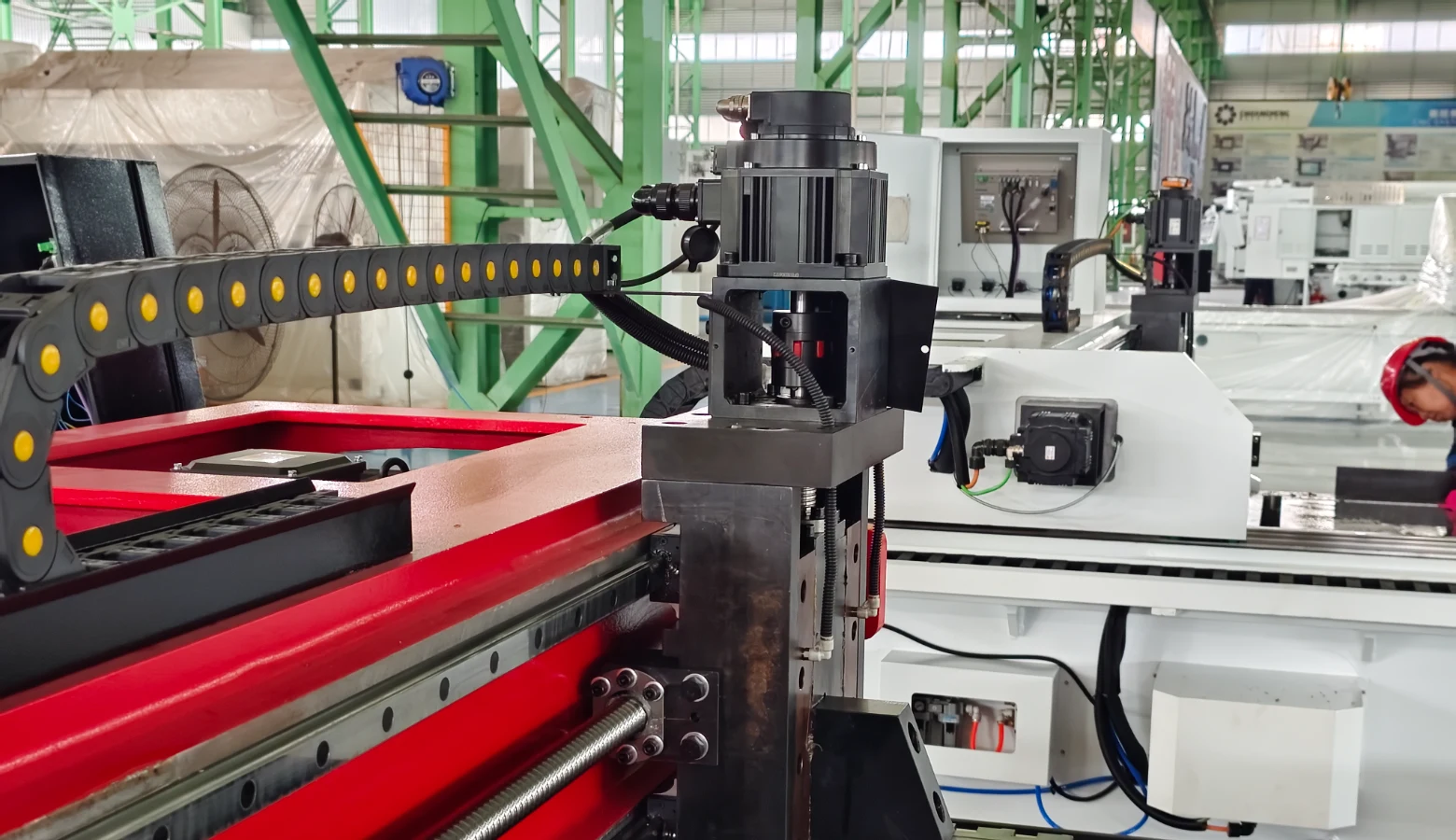

Servo Motor
Adopting high-performance servo motors, rapid torque delivery and precise positioning are achieved. This system ensures fast adjustments and accurate results across diverse production requirements.
horizontal servo motor

Technical Specifications

Model

Unit
WA-1250×4000
WA-1500×4000
WB-1250×4000
WB-1500×6000
WB-R 1500×4000
WB-R 1500×6000
Max. processing range (stainless steel)
Max. length
mm
4000
4000
4000
6000
4000
6000
Max. width
mm
1250
1500
1250
1250
1500
1500
Range of thickness
mm
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
A axis
Max. stroke
mm
4000
4000
4000
6000
4000
6000
Cutting speed
m/min
35-60
35-60
35-60
35-60
35-60
35-60
Returning speed
m/min
80-100
80-100
80-100
80-100
100-120
100-120
X axis
Max. stroke
mm
1250
1500
1250
1500
1500
1500
Cutting speed
m/min
/
/
/
/
35-60
35-60
Returning speed
m/min
20
20
20
20
80-100
80-100
Z axis
Max. stroke
mm
50
50
50
50
40
40
Movement speed
m/min
15
15
15
15
15
15
W axis
Max. stroke
mm
/
/
/
/
400
400
Positioning accuracy
A axis
mm
/
/
/
/
±0.02
±0.02
X axis
mm
±0.02
±0.02
±0.02
±0.02
±0.02
±0.02
Z axis
mm
/
/
/
/
±0.02
±0.02
W axis
mm
±0.02
±0.02
±0.02
±0.02
±0.02
±0.02
Dimension (L x W x H)
Returning speed
mm
6000 x 2300 x 1600
6000 x 2500 x 1600
6000 x 2300 x 1600
8000 x 2500 x 1680
6500 x 2700 x 1600
8500 x 2700 x 1750
Specifications apply to standard models. T&L reserves the right to adjust data without notice.

Customization Options Tailored for Your Business

Engineered for versatility, our V grooving machines offer customizable options to precisely match your production requirements, ensuring seamless integration and optimal performance tailored to support the unique demands of your operations.
  • Processing Capacity
  • Tool Material and Configuration
  • Automatic Function
  • Product Appearance
  • Power Supply Voltage
  • More
Learn More
Sheet Metal Processing Equipment Customization

Only 5-Step Away from Your Ideal Machine

Customize Your Machine Today
01
Requirements Analysis
Detailed consultation to understand your production needs, technical requirements, and specific industry standards.
02
Technical Design
Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.
03
Solution Review
Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.
04
Manufacturing & Testing
Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.
05
Delivery & Support
Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
