Accuracy. Durability. Efficiency

TLBEND® Hybrid Press Brake

Combining innovative servo drive systems and a simple cylinder interface without external piping, our hybrid press brakes deliver exceptional precision, efficiency, and noise reduction for modern sheet metal fabrication.

Home
Press Brake
Hybrid Press Brake

Play Video

Hybrid Press Brakes for Sale

front view of cnc hybrid press brake machine

PD-17041 CNC Hybrid Servo Press Brake

PD-11032 CNC Hybrid Servo Press Brake

Not sure which press brake is right for you?

Tell us your sheet metal bending details!

Key Features of Hybrid Press Brakes

Fast Production Capability

Optimized for quick turnaround on smaller workpieces, improving productivity and reducing cycle times by 10%.

Effective Deflection Compensation

The CNC system adjusts deflection compensation based on the bending sheet’s process state, ensuring uniform angles across all parts.

Advanced Safety Protection

Incorporates safety features that trigger alarms and stop the machine automatically if objects enter the tooling zone during operation.

Emergency Stop Foot Pedal

An integrated foot pedal allows for immediate machine shutdown, enhancing operator safety during operation.

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.

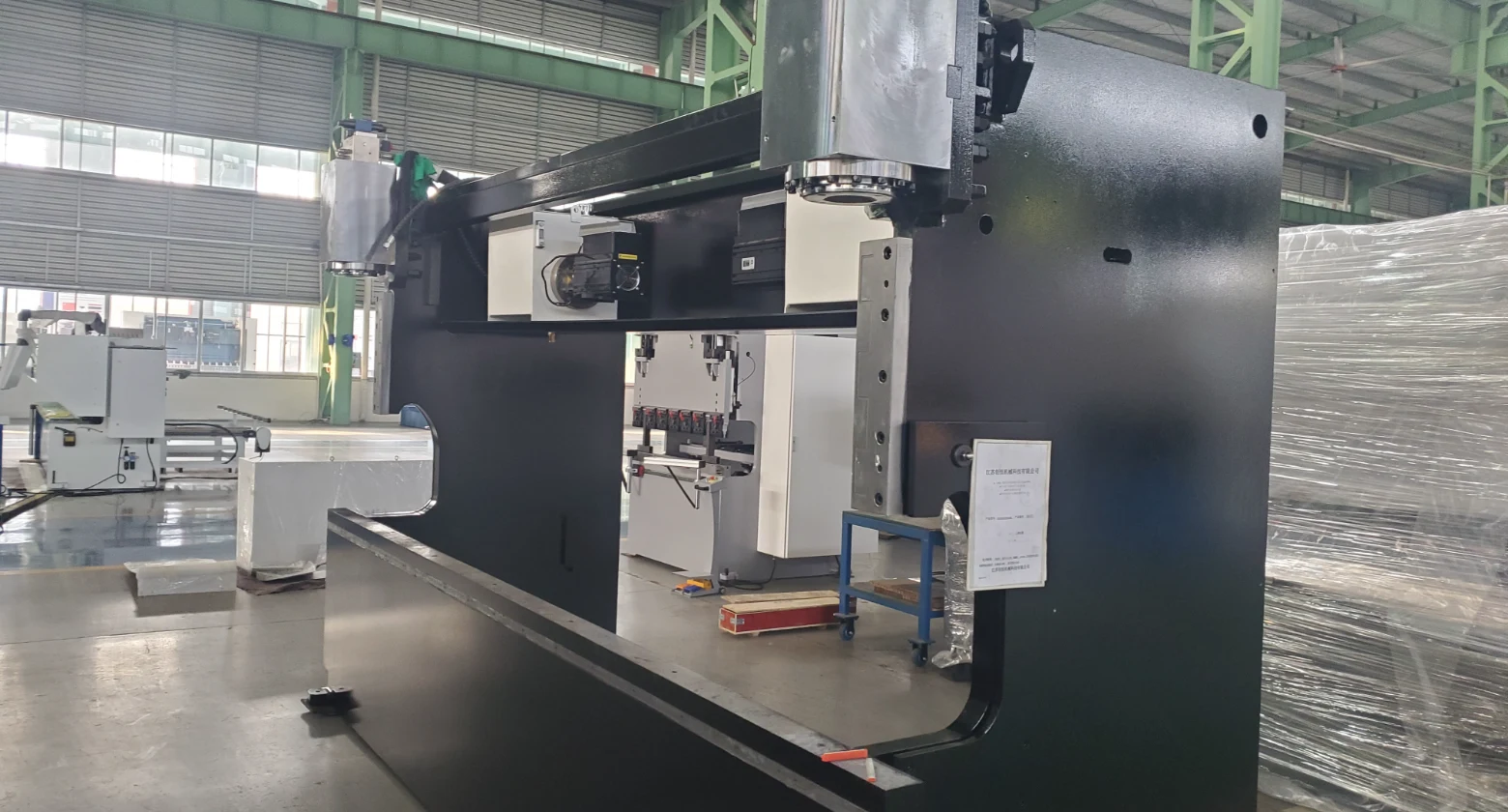

Machine Frame

Top ansteel materials are used to ensure that the frame is strong and durable. Sturdy construction helps to maintain high reliability under high loads, reduce mechanical breakdowns and increase the service life, ultimately boosting overall productivity.

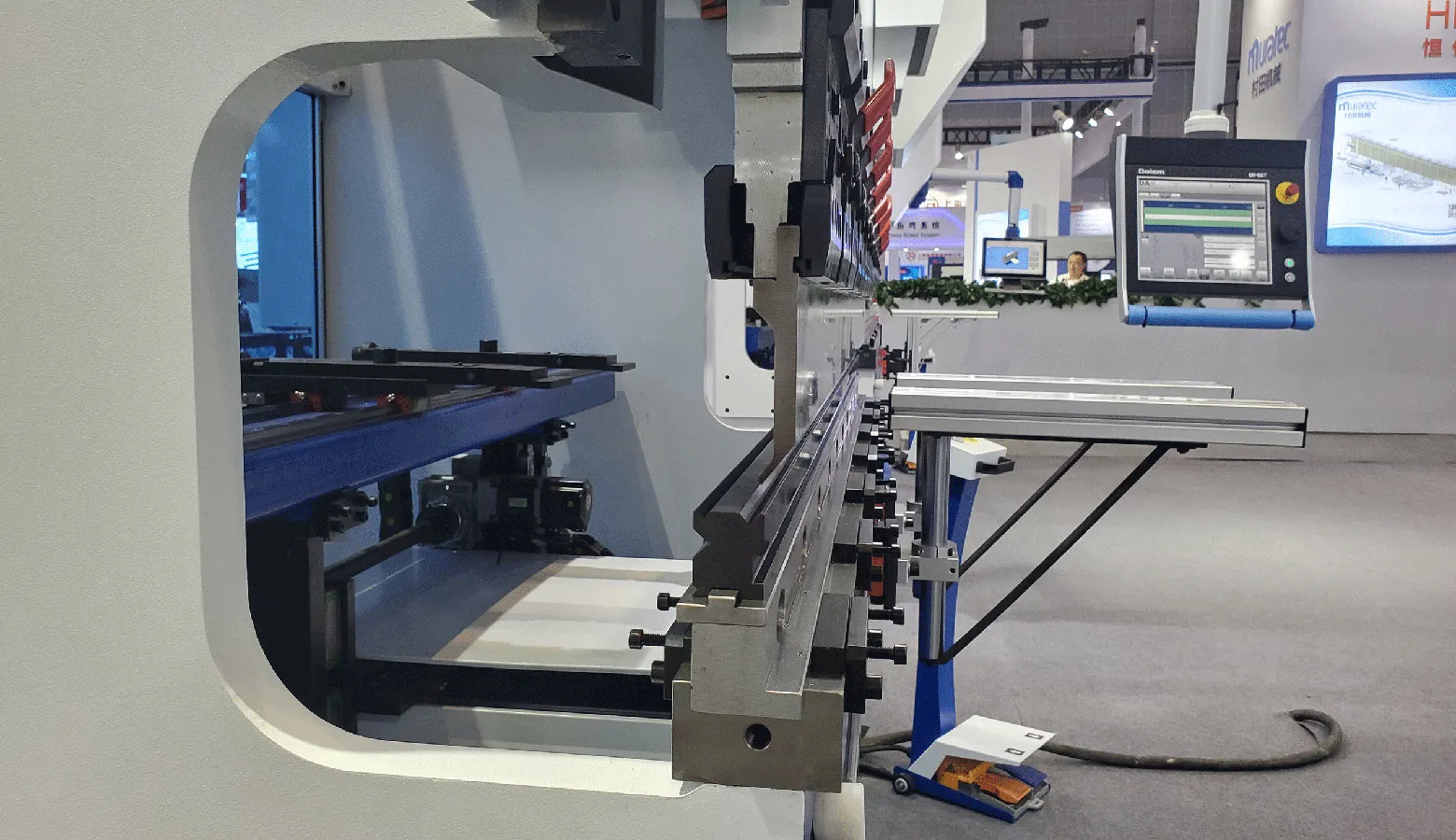

CNC Control System

Our press brakes are fitted with DELEM and CYBELEC control systems that provide easy to use operator interface, accurate motion control and 2D/3D programmable control for increased productivity through efficient and accurate operations and minimal time required to set up for complex operations.

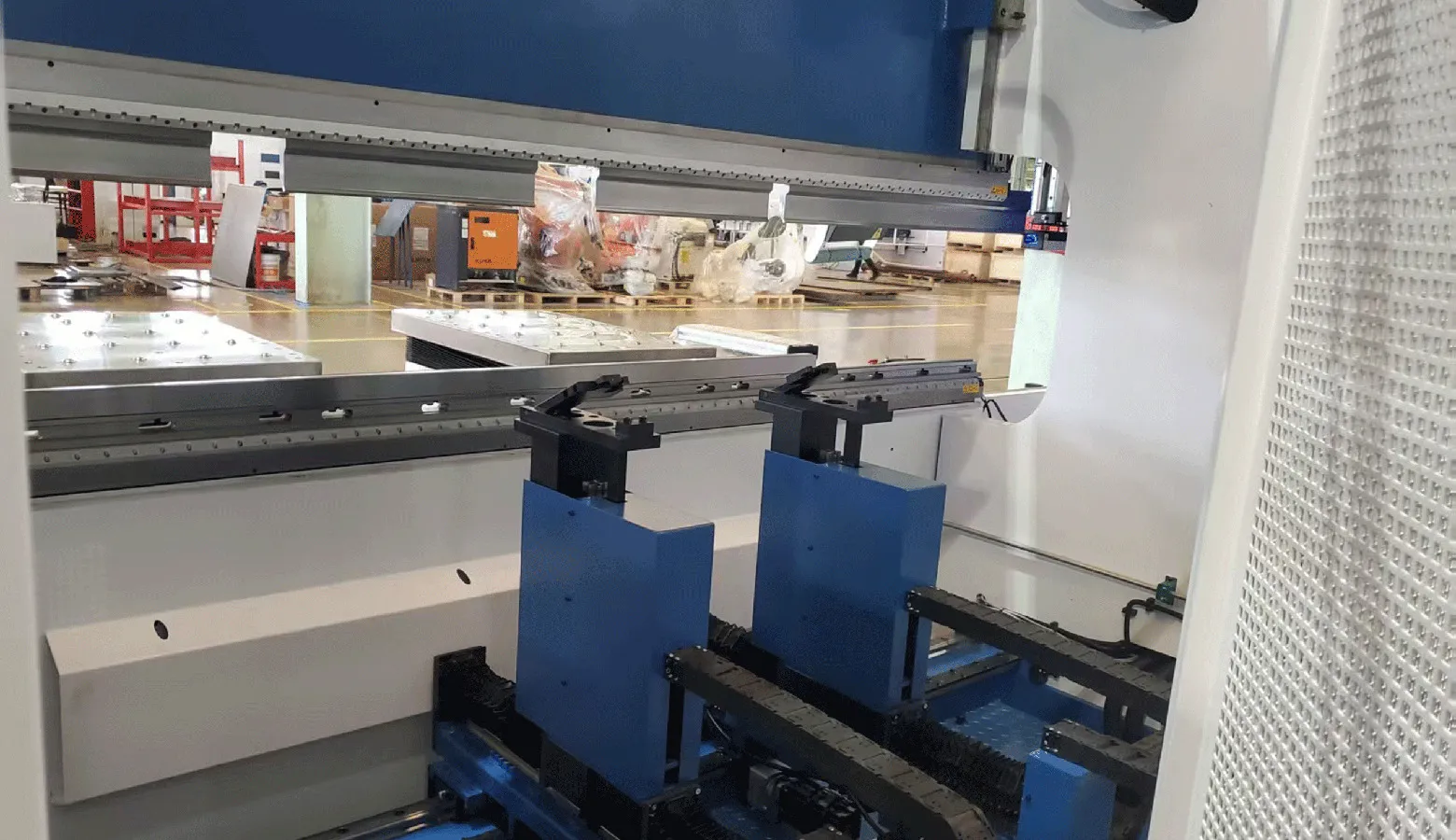

Backgauge

Press brakes feature a dual linear guide backgauge with X and R axes. The CNC-driven backgauge employs AC servo motors and precision ball screw movement, guided by linear rails to ensure high accuracy and repeatability in positioning.

Lower Die Clamping

T&L Press brakes utilize a 2-V structure die featuring a 2V-T type quick clamping system. The design allows for rapid lower die changes, significantly enhancing operational efficiency during production runs.

Front Sheet Support

Equipped with two aluminum front supports, the step-type front sheet support features adjustable vertical height. Left-right rotation and anti-scratch capabilities ensure optimal support and protection for the workpiece during bending operations.

Electrical Parts

Featuring imported Schneider components, our electrical parts enhance reliability and safety while extending the machine's lifespan. Their organized design simplifies maintenance, reducing overall costs and ensuring consistent, long-term performance.

Technical Specifications

Model	Unit	PD-11032	PD-17041
Bending Force	KN	1100	1700
Bending Length	mm	3200	4100
Distance Between Uprights	mm	2700	3600
Throat Depth	mm	450	450
Ram Stroke	mm	230	230
Opening Height	mm	510	510
Ram max. speed
Approaching	mm/s	200	180
Working	mm/s	5.0-15	5.0-12
Returning	mm/s	200	180
Main Power	KW	5.5 x 2	11.0 x 2
Oil Tank Volume	L	60 x 2	90 x 2
Dimension	mm	3600 x 2300 x 2900	3500 x 2450 x 3150
Weight	kg	8600	13500

Specifications apply to standard models. T&L reserves the right to adjust data without notice.

We Support Any Customization and Upgrade

As a leading hydraulic press brake manufacturer, we specialize in crafting customized solutions if standard specifications don’t fit your needs.

Parameters

Our press brakes can be customized to meet specific operational requirements, ensuring they align perfectly with your production goals.

Functions

Boost the functionality of your press brake with customizable features that enhance performance and streamline operations.

Additional Features

Ensure both operator safety and high-precision results with optional auxiliary features designed to keep your production smooth, secure, and accurate.

Only 5-Step Away from Your Ideal Machine

Requirements Analysis

Detailed consultation to understand your production needs, technical requirements, and specific industry standards.

Technical Design

Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.

Solution Review

Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.

Manufacturing & Testing

Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.

Delivery & Support
