Accuracy. Durability. Efficiency

T&L Power Press

With robust stability, precise control, and versatile tonnage options, our power presses enable you to meet complex manufacturing demands with ease, reducing downtime and enhancing output consistency.
  • High-rigidity frame design
  • Compatible with various die heights
  • 0.1mm mold adjustment precision
  • Multiple tonnage options
Get A Quote
Play Video

Power Presses for Sale

SYA-E power press machine

SYA-80E Precise Press Machine

Not sure which power press is right for you?

Tell us your sheet metal processing details!
Consult Expert Now

Key Features of Power Presses

High-Performance & Efficiency
Utilizing advanced Japanese wet clutch technology, our press offers high performance and efficiency, delivering smoother operation and longer component life.
Unmatched Stability
High-rigidity frame and centralized transmission ensure consistent, accurate results, enhancing product quality.
Enhanced Operational Smoothness
Symmetric balance system minimizes vibrations, ensuring smooth, efficient operations with each press cycle.
Safety-Driven, Precise Operation
Advanced clutch, brake, and overload protection systems guarantee both safety and precision, minimizing operational risks.
Add Your Tooltip Text Here

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.
Inquire about More Standard & Optional Components

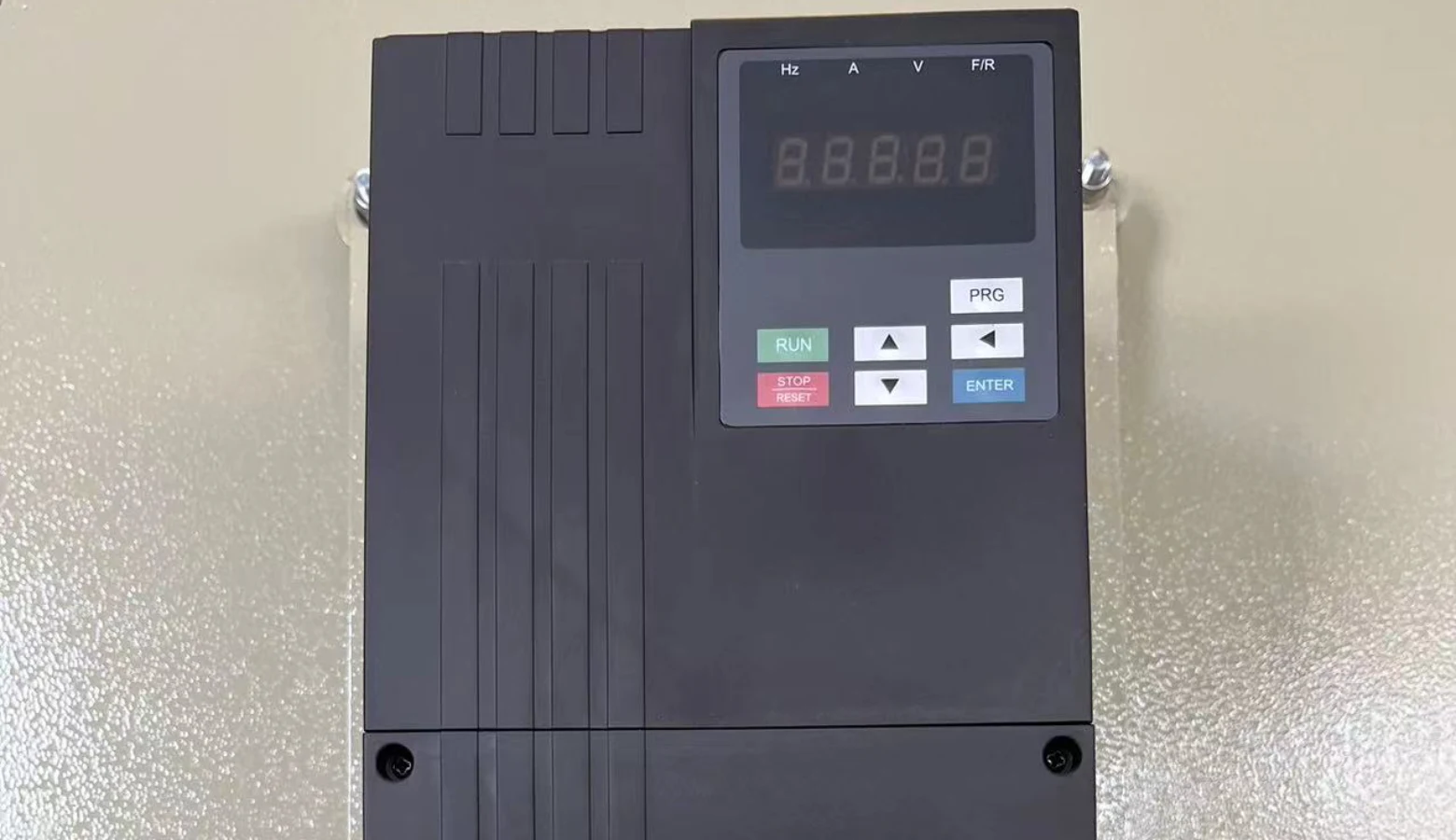

Inverter
Inverter controls motor speed and torque, enhancing energy efficiency while safeguarding the motor for stable, long-term, cost-effective operations.
inverter

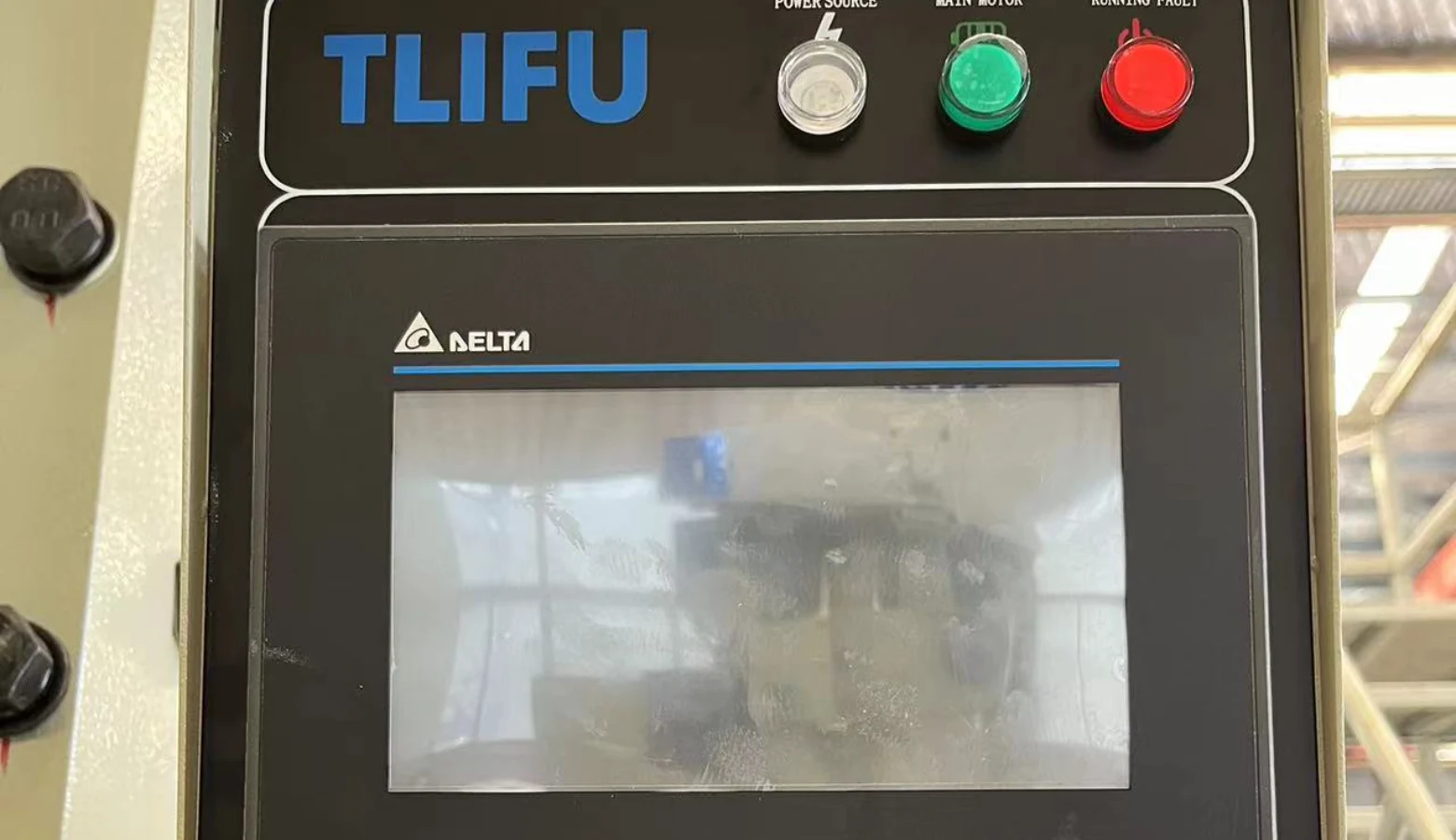

Touch pad
Touch pad offers a user-friendly interface, allowing operators to easily monitor and adjust equipment settings, improving usability and operational efficiency.
touch pad

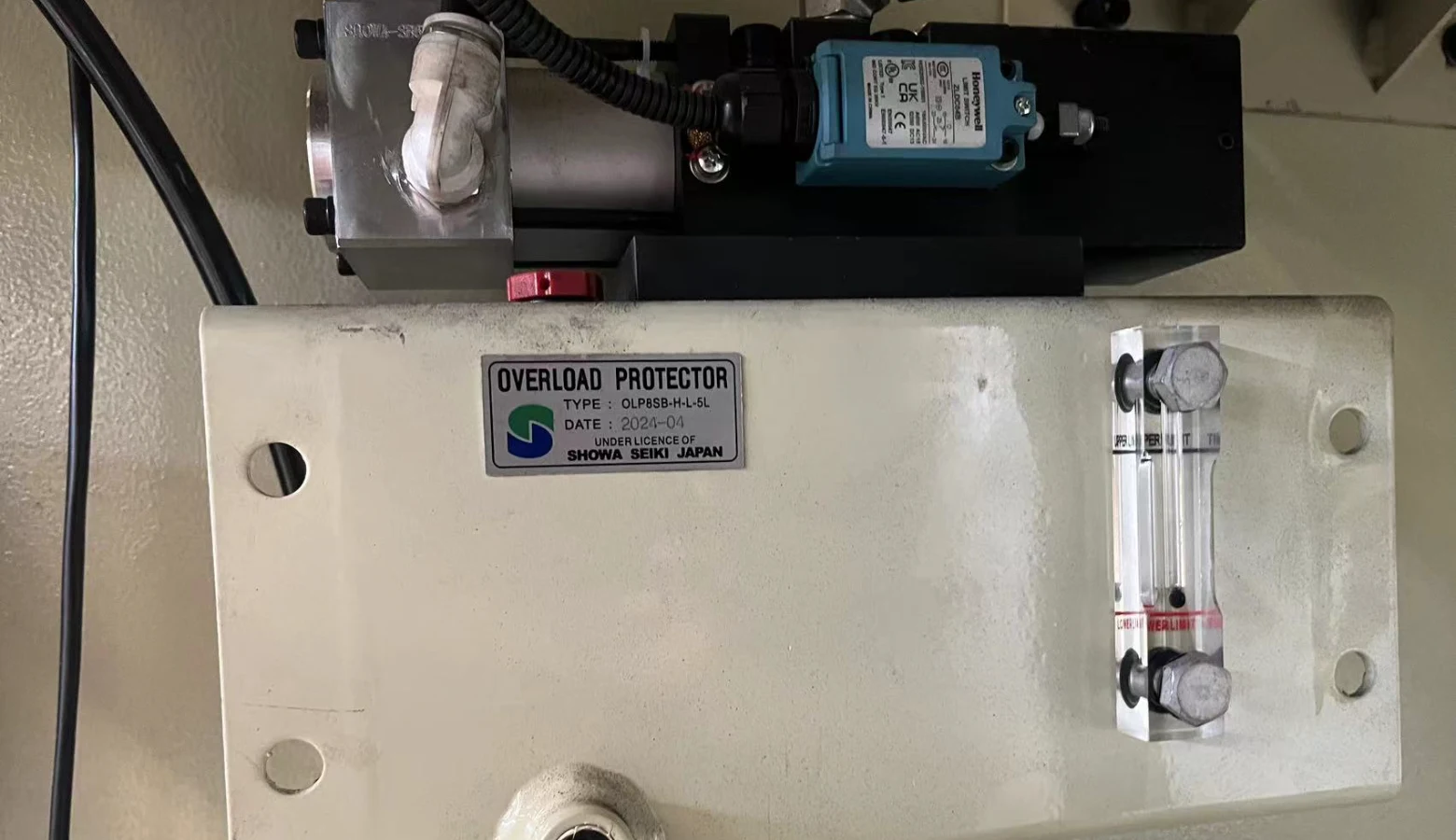

Hydraulic Over-load Protector
Protects machinery from damage by automatically relieving excess pressure during operation, ensuring safety and extending equipment lifespan in demanding conditions.
hydrauli overload protection

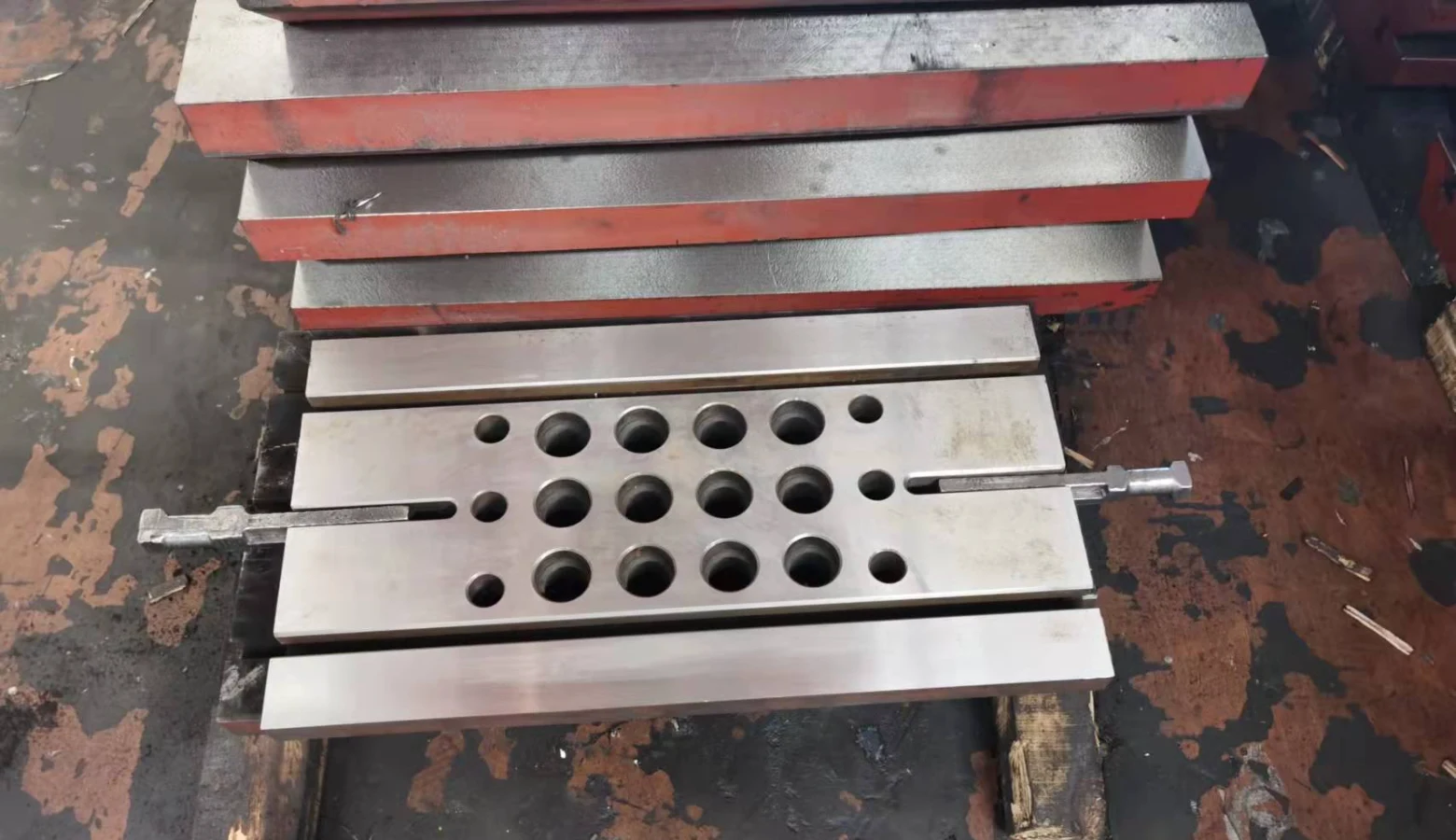

Pneumatic Die Cushion Device
Provides consistent pressure for deep drawing and forming processes, enhancing product quality, supporting complex shapes, and meeting accuracy requirements.
die cushion

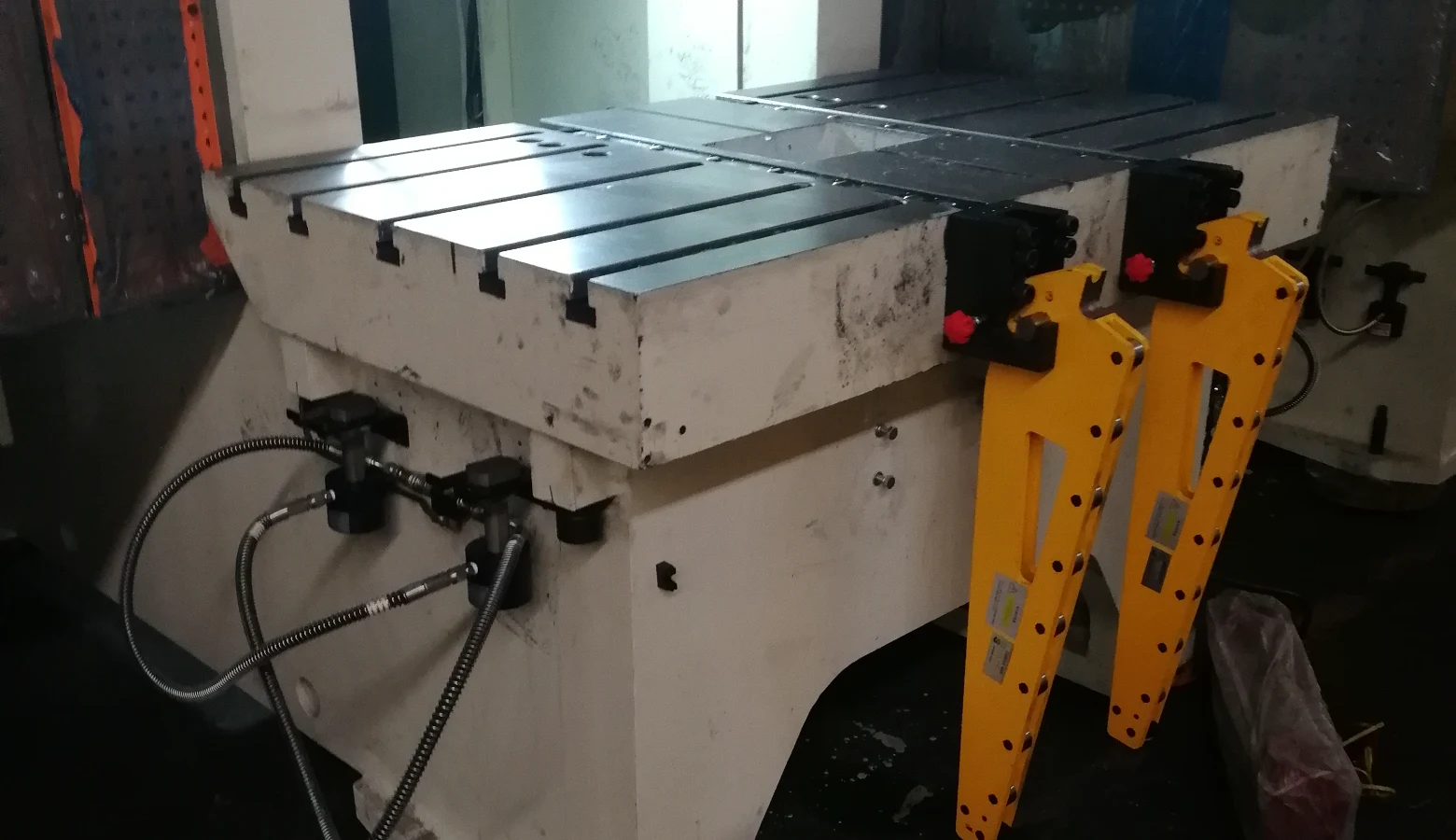

Quick Die Change Device
Significantly cuts die change time, enhancing production efficiency, particularly in settings requiring frequent product changes.
Quick die change device

Technical Specifications

Model

Unit
TLF-15
TLF-25
TLF-35
TLF-45
TLF-60
TLF-80
V
V
H
V
H
V
H
V
H
V
H
Capacity
Ton
15
25
35
45
60
80
Rated Tonnage Point
mm
1
3.2
1.6
3.2
1.6
3.2
1.6
4
2
4
2
Stroke of Slide
mm
60
60
30
70
40
80
50
120
60
150
70
Stroke/min

Variable
S.P.M
120-180
60-140
130-200
40-120
110-180
40-100
100-150
35-90
80-120
35-80
80-120
Fixed
130
110
85
75
65
65
Max Die Height
mm
200
200
215
220
235
250
265
310
340
340
380
Die Height Adjustment
mm
50
50
55
60
75
80
Slide Area
mm
300 x 230 x 50
470 x 250 x 50
520 x 285 x 50
560 x 300 x 60
700 x 400 x 70
520 x 285 x 50
Bolster Area
mm
680 x 300 x 70
680 x 300 x 70
800 x 400 x 70
850 x 440 x 80
900 x 500 x 80
800 x 400 x 70
Shank Hole Size
mm
ф38.1
ф38.1
ф38.1
ф38.1
ф50
ф50
Main Motor
KWXP
2.2 x 6
4 x 4
4 x 4
5.5 x 4
5.5 x 4
7.5 x 4
Capacity of Die Cushion
Ton
/
/
2.3
2.3
3.6
3.6
Stroke of Die Cushion
mm
/
/
50
50
70
70
Die Cushion Effective Area
m㎡
/
/
300 x 230
300 x 230
350 x 300
450 x 310
Air Pressure
Kg/m³
6
6
6
6
6
6
Overall Dimensions
L x R
mm
740
840
900
950
1000
1170
F x B
mm
1264
1334
1384
1584
1604
1779
H
mm
2098
2179
2348
2525
2808
3040
Presses Precision


GB (JIS) Grade 1
Specifications apply to standard models. T&L reserves the right to adjust data without notice.

Customization Options Tailored for Your Business

Engineered for versatility, our power presses offer customizable options to precisely match your production requirements, ensuring seamless integration and optimal performance tailored to support the unique demands of your operations.
  • Tonnage and Size
  • Quick Die Change Device
  • Foot Switch
  • Product Appearance
  • Power Supply Voltage
  • More
Learn More
Sheet Metal Processing Equipment Customization

Only 5-Step Away from Your Ideal Machine

Customize Your Machine Today
01
Requirements Analysis
Detailed consultation to understand your production needs, technical requirements, and specific industry standards.
02
Technical Design
Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.
03
Solution Review
Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.
04
Manufacturing & Testing
Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.
05
Delivery & Support
Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
