T&L Turret Punching Machine

T&L turret punching machine delivers high precision, versatility, and efficiency, tailored for punching, forming, and contour cutting of complex sheet metal parts, optimizing workflow and improving operational efficiency every time.
  • 38 stations with 2 auto index
  • Low-resistance mobile worktable reduces scratches
  • High-speed servo-driven system
  • Multi-tool turret for fast switching
Get A Quote
Play Video

Turret Punching Machines for Sale

cnc turret punching machine

MTE-300 CNC Turret Punching Machine

Not sure which turret punching machine is right for you?

Tell us your sheet metal processing details!
Consult Expert Now

Key Features of Turret Punching Machines

High Punching Efficiency
Utilizes four tool sets (ф16mm, ф18mm, ф20mm, ф23mm) for punching 2mm thick sheets, achieving 400 punches efficiently.
Reduced Energy Consumption
Consumes significantly less power than traditional hydraulic machines, achieving up to 72% energy savings without compromising performance.
Quick Die Change
Easy maintenance with rapid-change die seats, minimizing machine downtime and enhancing operational efficiency.
Lower Noise and Vibration
Plastic worktable boards with fine brushes reduce operational noise and vibration, protecting the material surface.
Turret-punching-machine
Add Your Tooltip Text Here

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.
Inquire about More Standard & Optional Components
O-Type Welded Frame
The frame undergoes a double vibration stress removal treatment to ensure durability during long-term high-intensity use. The entire frame is processed by the German SHW dual-side pentahedron processing center in a single setup, eliminating the need for repositioning, which further enhances the machine's stability.

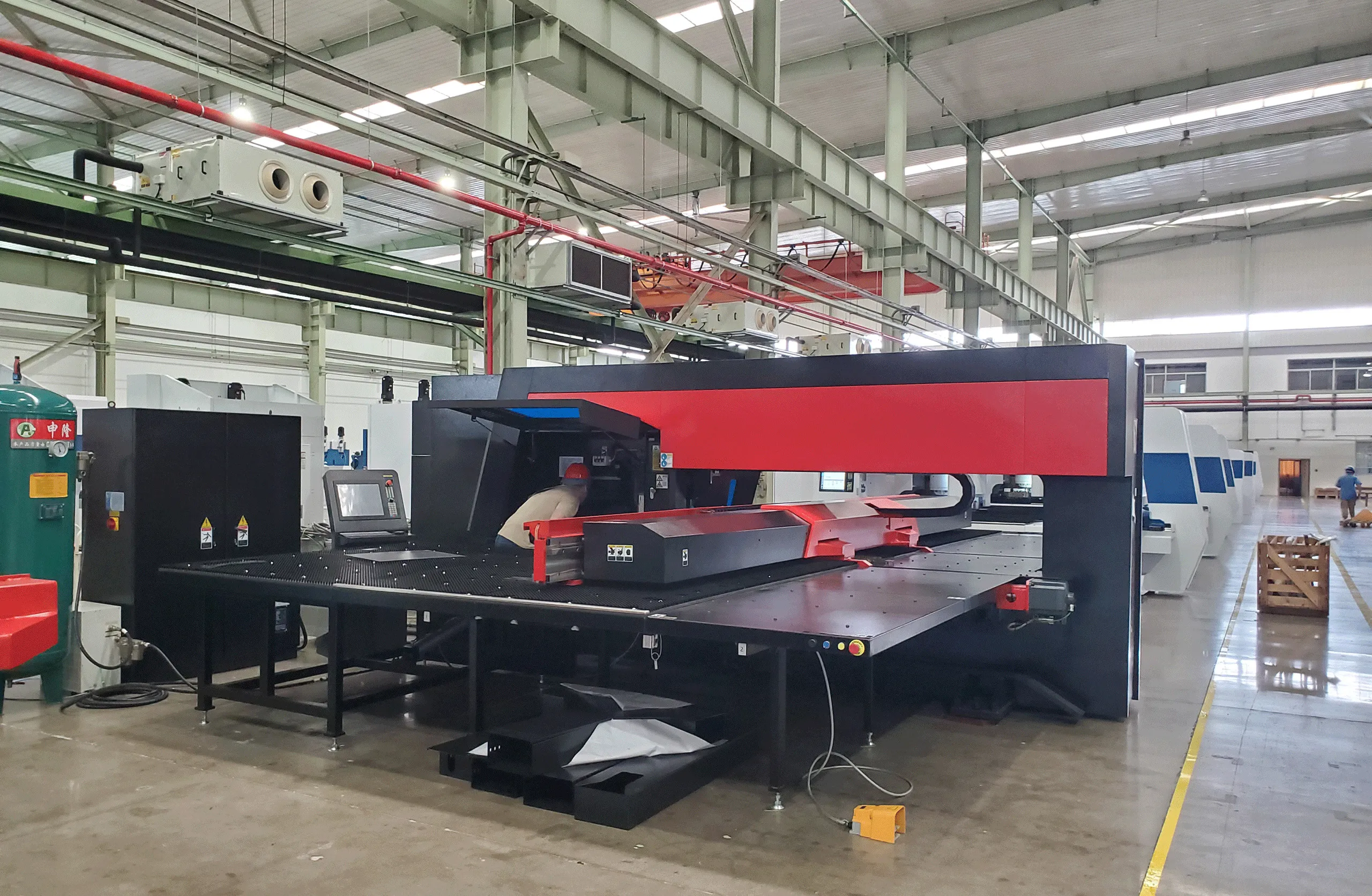

CNC Turret punching machine

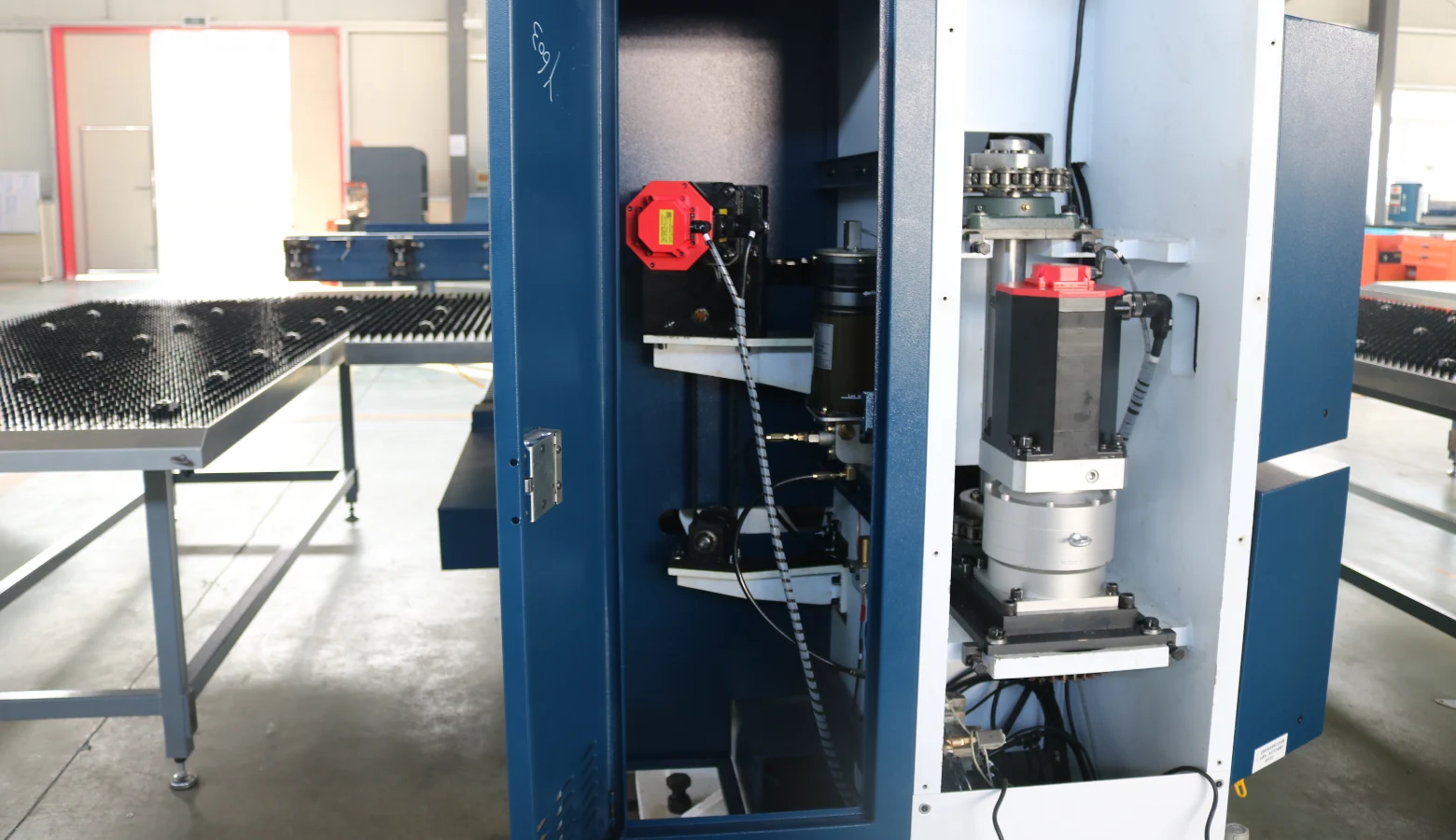

Gear and Rack Transmission System
The X-axis adopts a gear and rack structure, while the Y-axis uses dual ball screws driven by dual servo motors, providing fast feeding speeds and high stability to ensure accuracy and smooth processing.
Drive system of turret punching machine

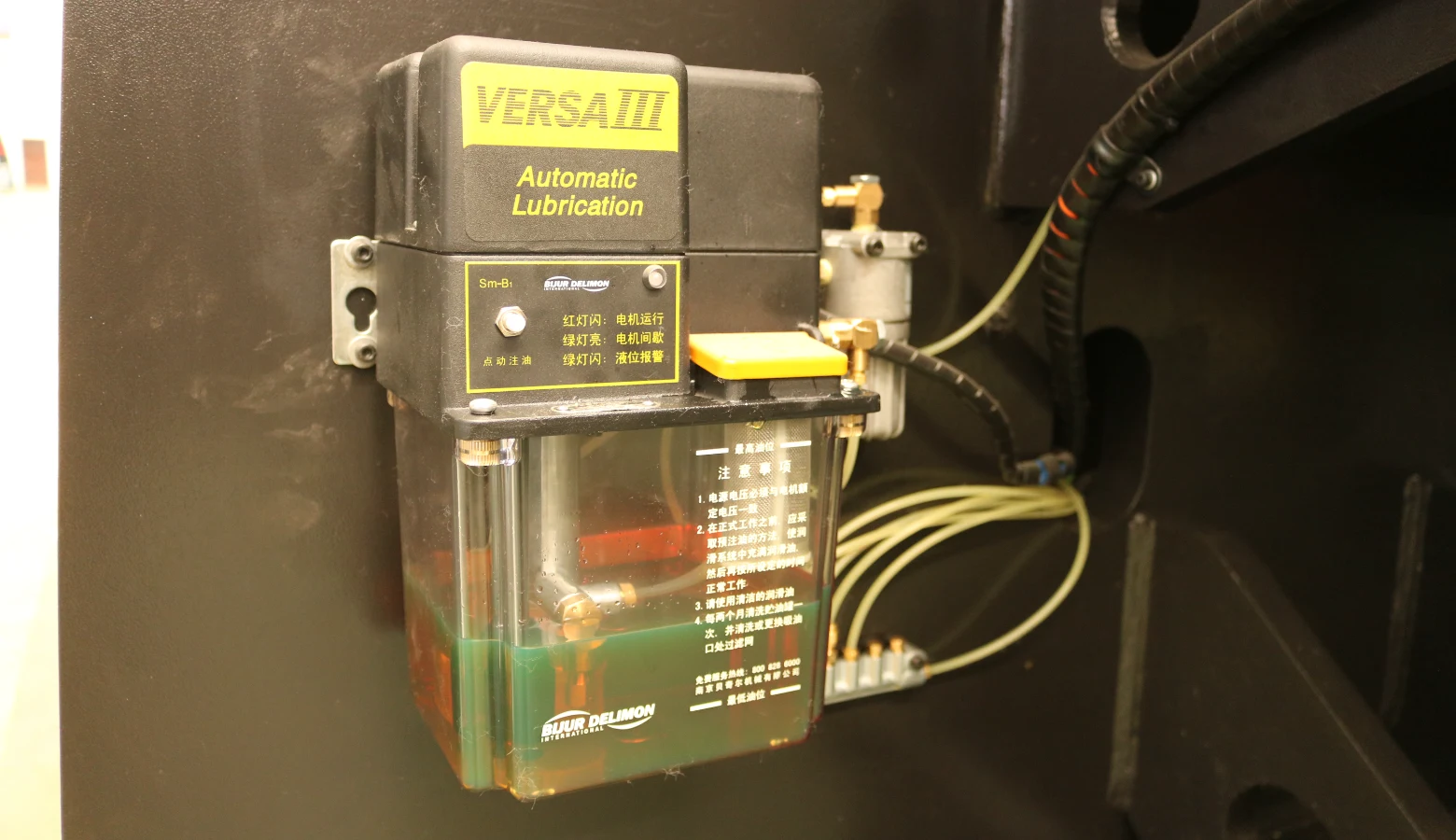

Centralized Lubrication and Recycling System
This system directly sends lubrication grease to the relevant points, reducing friction among components and extending the equipment's service life. This not only reduces maintenance frequency but also ensures efficient operation.
Lubrication system of turret punching machine

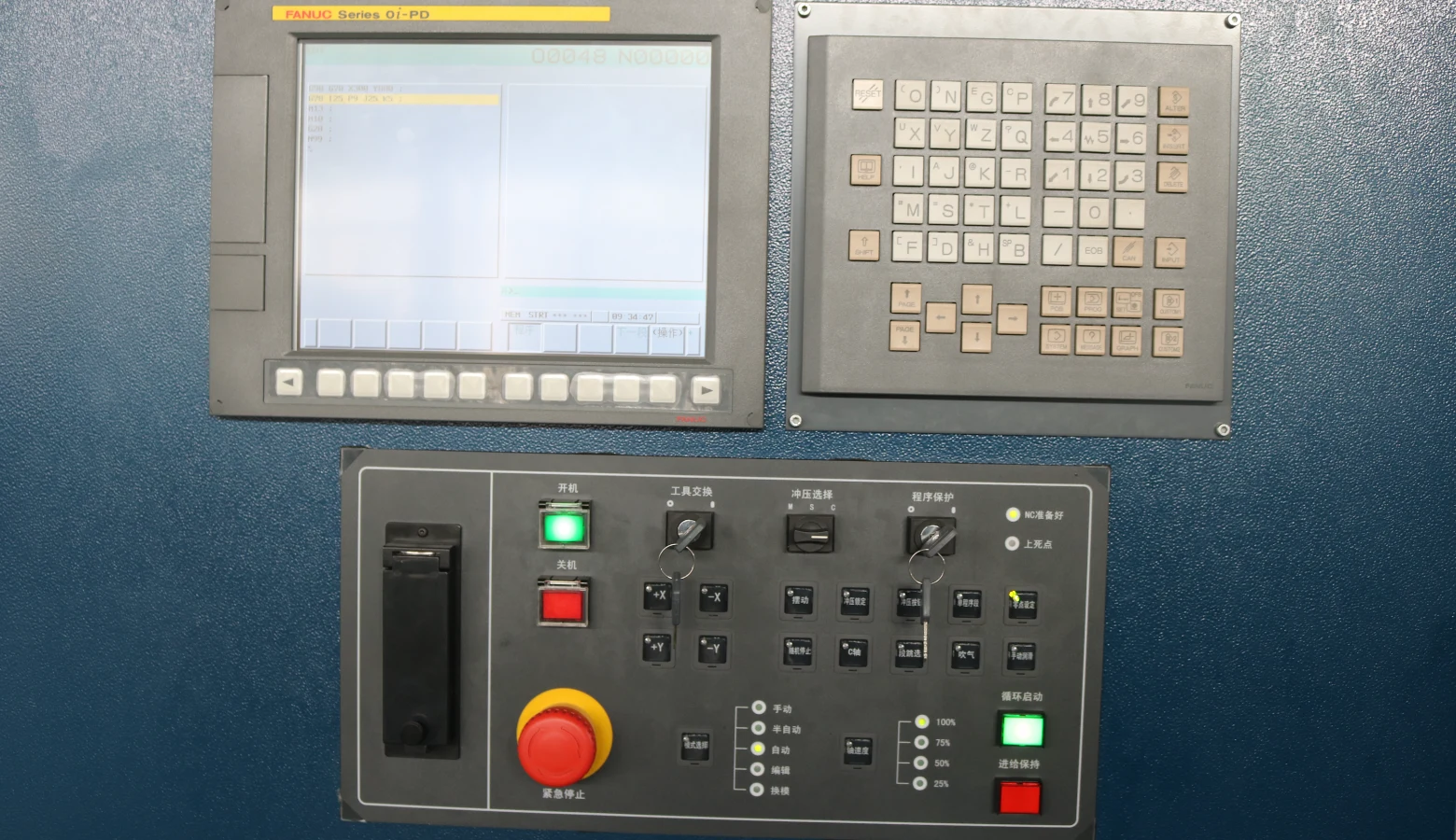

FANUC CNC System
Equipped with the FANUC OI-PF CNC system featuring a 15-inch touch screen, our machine supports internationally recognized G-code programming, making it simple and intuitive for users globally to handle diverse processing requirements.
cnc Fanuc of turret punching machine

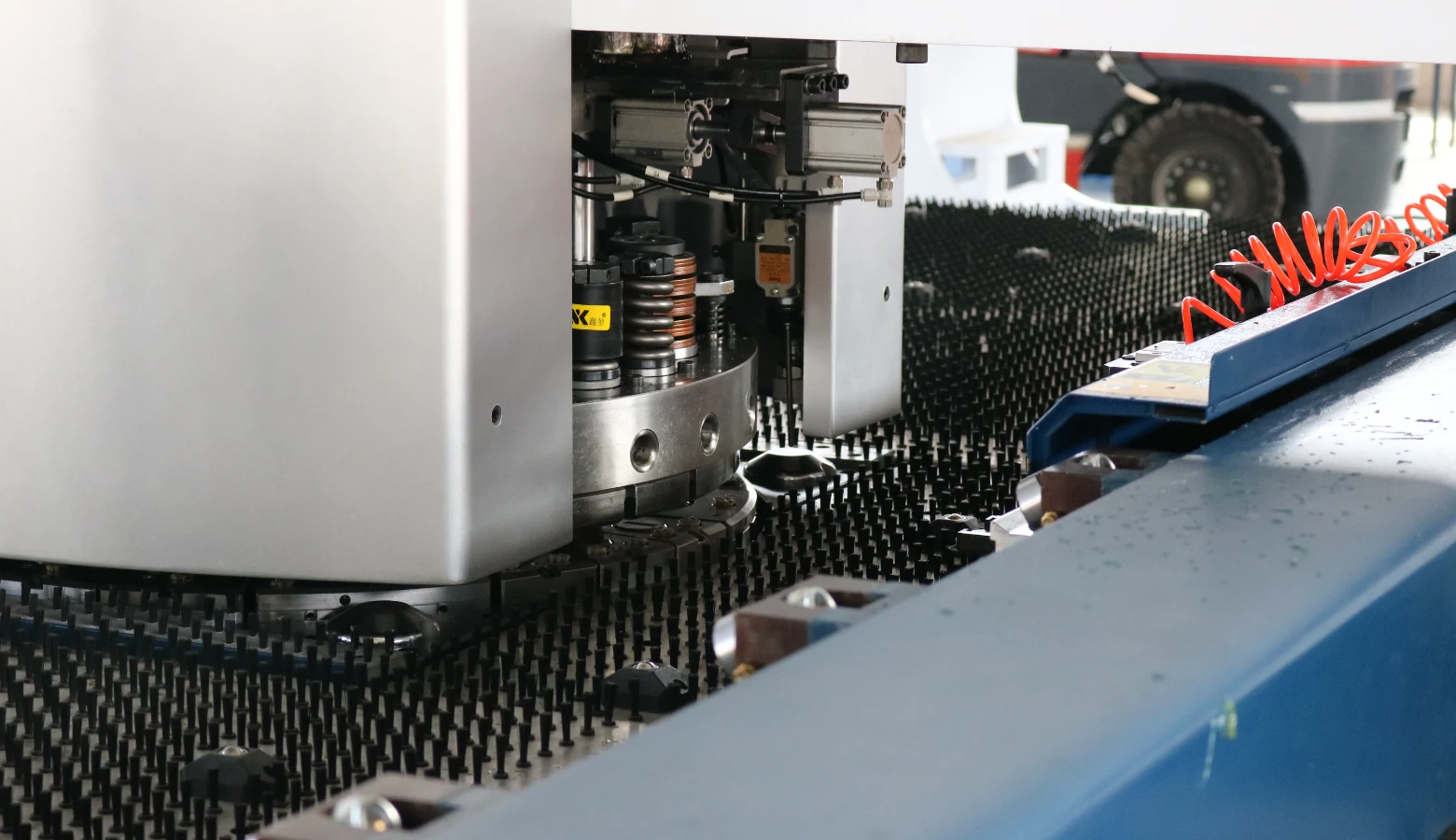

Thick Turret
Quick change model thick turret, high efficiency, high stability
turrret of turret punching machine

Technical Specifications

Model
Unit
MTE-3018
Punch Force
kN
300
Max Processing Sheet Size (with one reposition)
mm
1250 x 5000
Max Processing Sheet Thickness
mm
3.2
Max Punching Stroke
mm
40
Max Punch Diameter per Once
mm
ф88.9
No.of Station
piece
38
No.of Auto-inde
piece
2
Hole Spacing Accuracy
mm
±0.1
Max Sheet Moving Speed (sheet with 1mm thickness)
X-axis
m/min
100
Y-axis
80
Max Punch Hit at 1mm pace & 4mm stroke
hpm
820
Max Punch Hit at 25mm pace &4mm stroke
hpm
450
Turre Rotating Speed
rpm
30
Cnc System
/
FANUC OI-PF
Controlling Axis
piece
5
Outline Dimension
mm
5340 x 530 x 2360
Specifications apply to standard models. T&L reserves the right to adjust data without notice.

Customization Options Tailored for Your Business

Engineered for versatility, our turret punching machines offer customizable options to precisely match your production requirements, ensuring seamless integration and optimal performance tailored to support the unique demands of your operations.
  • Processing Capacity
  • Turret and Tooling Configuration
  • Automation Upgrades
  • Product Appearance
  • Power Supply Voltage
  • More
Learn More

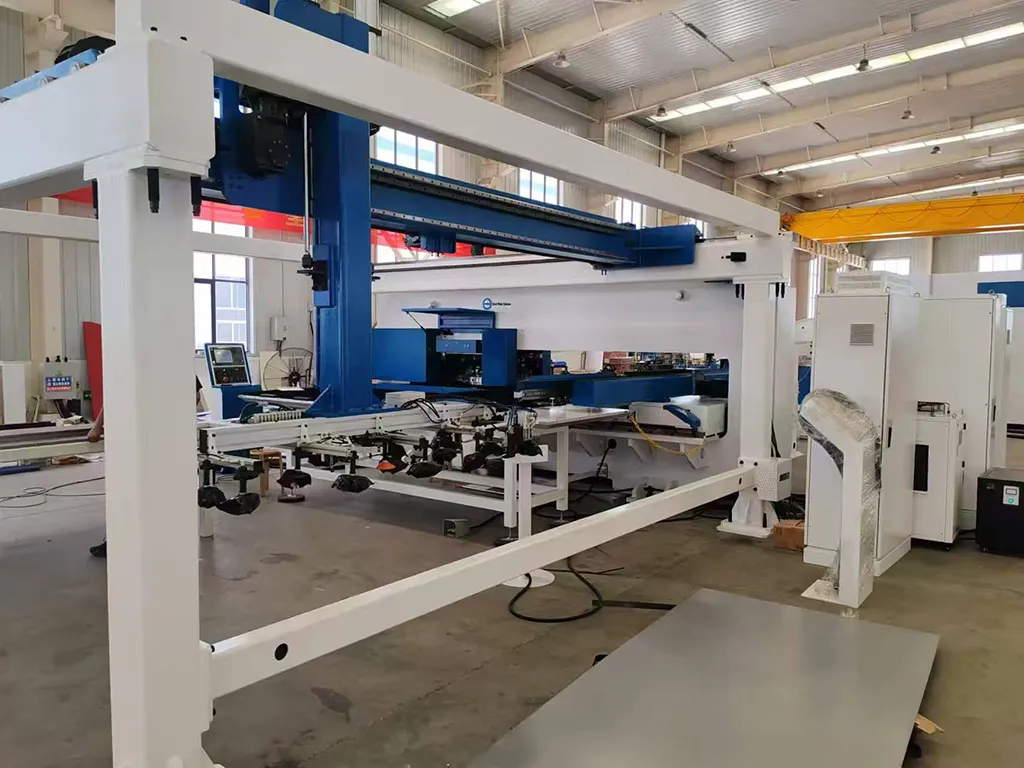

Auto loading & unloading device of Turret punching machine

Only 5-Step Away from Your Ideal Machine

Customize Your Machine Today
01
Requirements Analysis
Detailed consultation to understand your production needs, technical requirements, and specific industry standards.
02
Technical Design
Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.
03
Solution Review
Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.
04
Manufacturing & Testing
Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.
05
Delivery & Support
Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
