T&L Vertical V Grooving Machine

Specialized for precise grooving, our vertical V grooving machine combines advanced technology and robust construction to handle intricate sheet metal shapes, ensuring reliable performance and exceptional efficiency in every operation.
  • Processes non-standard shapes with ease
  • Ensures precision with gear-rack motion system
  • Offers multi-blade setups for faster grooving
  • Customizable configurations for specific needs
Get A Quote
Play Video

Vertical V Grooving Machines for Sale

LB-double knife-v-grooving-machine

LB-1500×4200 CNC Vertical Grooving Machine

Not sure which vertical V grooving machine is right for you?

Tell us your sheet metal processing details!
Consult Expert Now

Key Features of Vertical V Grooving Machines

Faster Production Cycles
Dual-blade systems and CNC controls ensure high-speed operations, streamlining the grooving process and enhancing overall productivity for various manufacturing needs.
Enhanced Machine Durability
High-rigidity frame and premium components ensure stability under heavy use, minimize maintenance requirements, and extend operational lifespan for reliable long-term performance.
Low-Noise Operation
Equipped with advanced motion and cutting systems, the machine operates with minimal noise, providing a quieter and more comfortable work environment.
Versatile Shape Processing
Handles irregular, non-standard, and thick sheet metals, meeting diverse client and design needs.
LB-v-grooving-machine
Add Your Tooltip Text Here

Standard Components

Higher Standards, Greater Reliability

Built with precision and premium components, our machines minimize production interruptions, bringing you maximum productivity and cost efficiency.
Inquire about More Standard & Optional Components

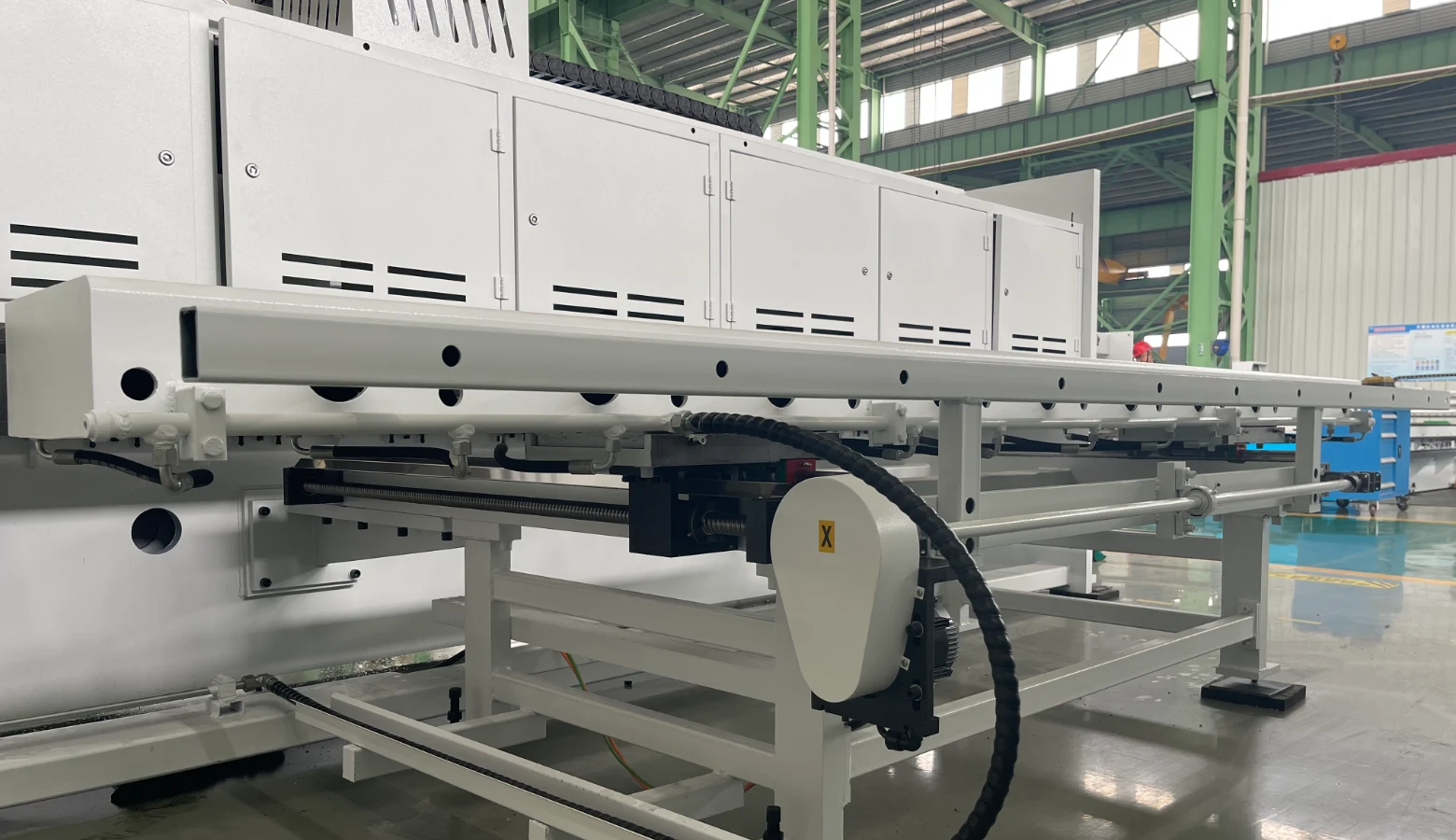

Structure & Frame
We adopt a high-rigidity frame and beam design, treated with post-weld high-temperature annealing, effectively ensuring stable precision and long-lasting durability under demanding operational conditions.
vertical grooving machine structure
CNC Control System
Incorporating advanced CNC controls, precise adjustments and optimized cutting paths become effortless. User-friendly programming simplifies workflows, increases efficiency, and achieves exceptional accuracy for complex grooving tasks.
vertical grooving machine cnc

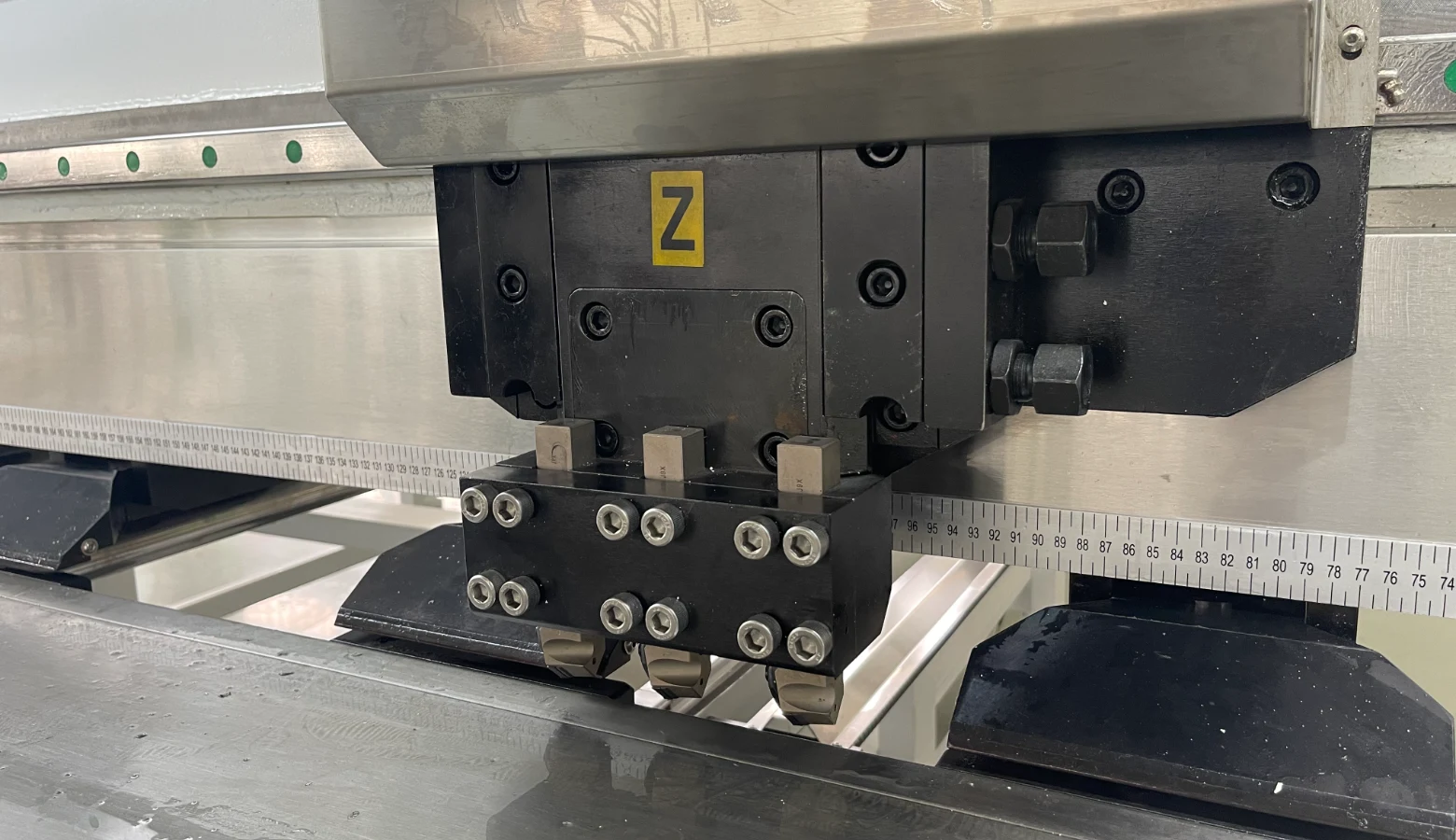

Alloy Blade
Engineered with high-performance alloy blades, the system supports efficient grooving with multiple configurations. Options include six alloy blades, eight high-speed steel blades, etc, tailored for optimal precision and operational efficiency.
vertical grooving machine vertical blade

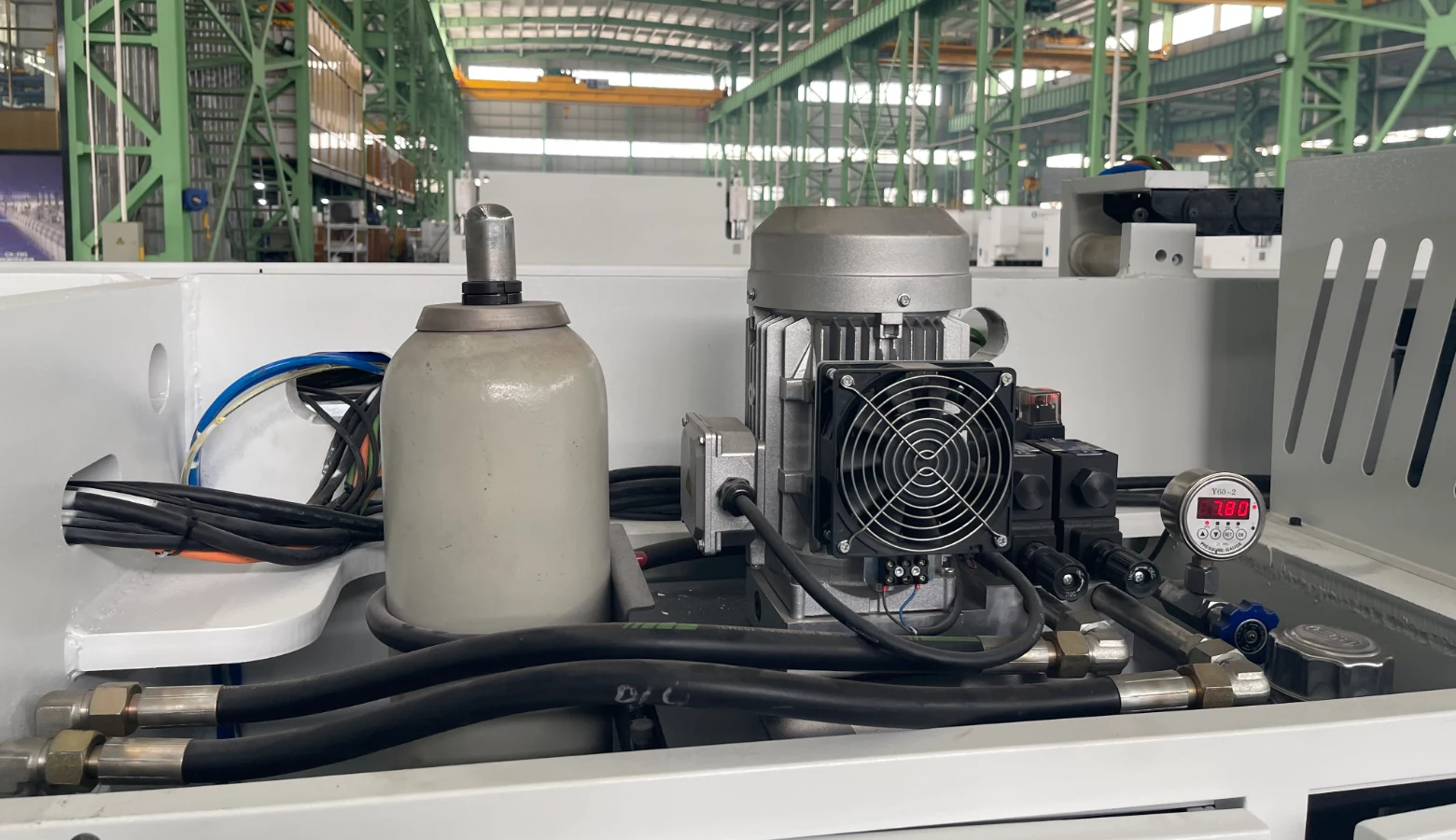

Hydraulic Integrated Station
Employing imported brand hydraulic valve components, the integrated station features a compact structure with reduced failure rates, ensuring high reliability and efficiency in metal grooving operations.
hydraulic station of grooving machine

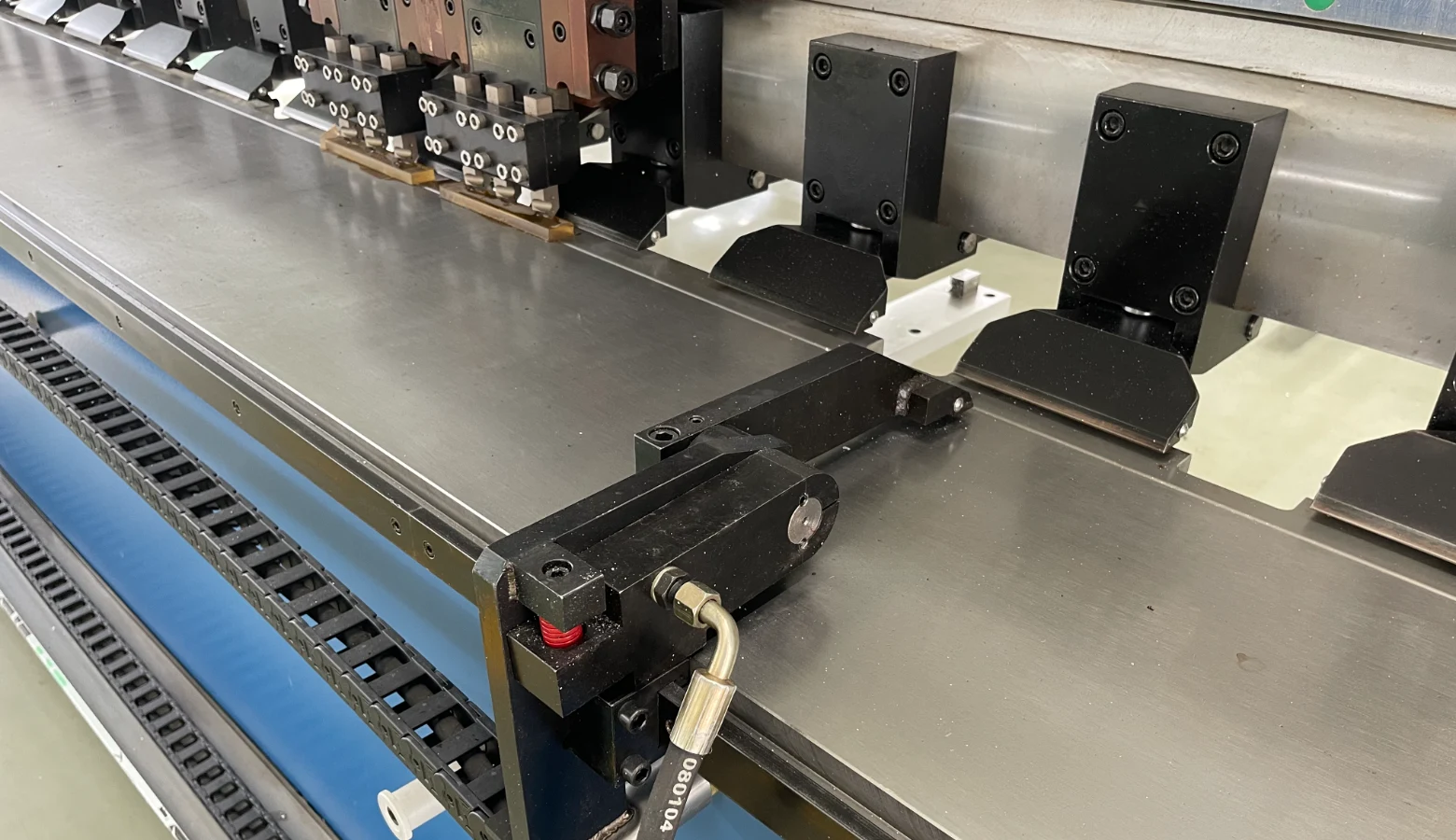

Worktable
Constructed from forged and quenched 42CrMo material, the worktable offers durability and a long service life. Integrated leveling features maintain smooth operation and consistent precision.
vertical worktable

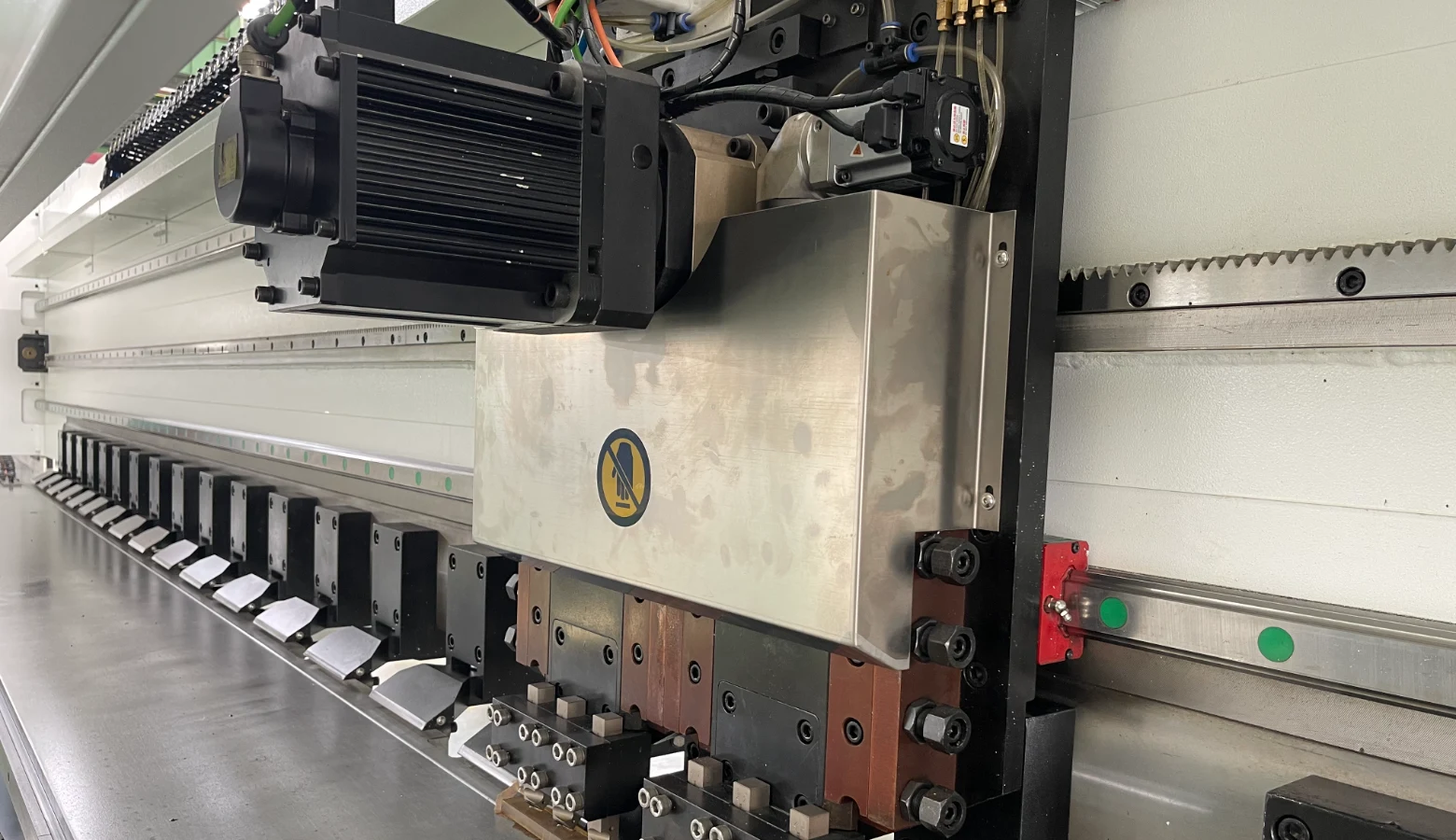

Servo Motor
Adopting high-performance servo motors, rapid torque delivery and precise positioning are achieved. This system ensures fast adjustments and accurate results across diverse production requirements.
vertical grooving machine servo motor

Technical Specifications

Model

Unit
LB-1500×4200
LB-2000×6000
LD-1250×4000
LD-1500×4000
Max. processing range (stainless steel)
Max. length
mm
4200
6000
4000
4000
Max. width
mm
1500
2000
1250
1500
Range of thickness
mm
0.3-6
0.3-6
0.3-4
0.3-4
A axis
Max. stroke
mm
4200
6000
4000
4000
Cutting speed
m/min
35-60
35-60
35-60
35-60
Returning speed
m/min
100-120
100-120
100-120
100-120
X axis
Max. stroke
mm
1500
2000
1250
1500
Returning speed
m/min
20
20
20
20
Z axis
Max. stroke
mm
30
30
30
30
Movement speed
m/min
15
15
15
15
Positioning accuracy
A axis
mm
±0.01
±0.01
±0.01
±0.01
X axis
mm
±0.02
±0.02
±0.02
±0.02
Z axis
mm
±0.02
±0.02
±0.02
±0.02
Quantity of pressing device
/
/
16
23
12
12
Quantity of clamping
/
/
15
22
10
10
Quantity of Knife box
/
/
2
2
1
1
Dimension (L x W x H)
Returning speed
mm
6100 x 3200 x 2100
8200 x 3600 x 2300
5800 x 2700 x 1800
5800 x 3000 x 1800
Specifications apply to standard models. T&L reserves the right to adjust data without notice.

Customization Options Tailored for Your Business

Engineered for versatility, our V grooving machines offer customizable options to precisely match your production requirements, ensuring seamless integration and optimal performance tailored to support the unique demands of your operations.
  • Processing Capacity
  • Tool Material and Configuration
  • Automatic Function
  • Product Appearance
  • Power Supply Voltage
  • More
Learn More
Sheet Metal Processing Equipment Customization

Only 5-Step Away from Your Ideal Machine

Customize Your Machine Today
01
Requirements Analysis
Detailed consultation to understand your production needs, technical requirements, and specific industry standards.
02
Technical Design
Our engineering team develops customized specifications and solutions based on your requirements, including detailed technical drawings.
03
Solution Review
Collaborative review of the proposed solution, ensuring all specifications meet your needs before production begins.
04
Manufacturing & Testing
Production of your custom equipment with comprehensive quality control and 72-hour trial operation testing.
05
Delivery & Support
Professional delivery, installation guidance, and comprehensive training to ensure optimal equipment performance.
